SDO HMI 2011-08-12 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.37 | 20.29 | 6.62 | 11.96 | -22.14 | 172.48 | -15.76 | 152.46 | 0.5398 | 76.7 | 98.8 | |
|
previous
or next observation for the same group /

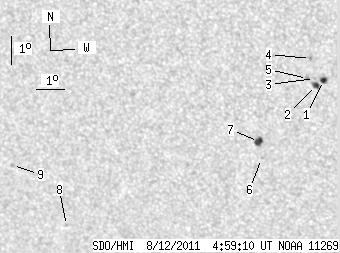

back to the solar disc SDO HMI 2011-08-12 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.98 | 3.61 | 1.71 | 2.07 | -20.84 | 174.91 | -13.33 | 154.72 | 0.5064 | 934.8 | 815.3 | |
| 3.43 | 4.33 | 1.97 | 2.49 | -21.01 | 174.66 | -13.58 | 154.47 | 0.5104 | 741.0 | 599.5 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -20.78 | 174.61 | -13.62 | 154.18 | 0.5075 | 830.0 | 703.0 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -20.10 | 174.54 | -13.69 | 153.42 | 0.4989 | 978.0 | 755.6 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -20.78 | 174.38 | -13.86 | 153.80 | 0.5092 | 734.0 | 626.3 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -23.61 | 172.51 | -15.73 | 153.47 | 0.5582 | -656.0 | -515.5 | |
| 4.96 | 5.78 | 2.94 | 3.42 | -23.02 | 172.48 | -15.76 | 152.91 | 0.5509 | -920.4 | -696.6 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -26.29 | 165.12 | -23.11 | 146.58 | 0.6411 | -643.0 | -534.6 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -24.23 | 163.57 | -24.66 | 142.80 | 0.6317 | -627.0 | -516.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
