SDO HMI 2011-08-12 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.95 | 24.36 | 5.68 | 19.63 | 22.91 | 134.70 | -51.34 | 65.88 | 0.7900 | 13.2 | -127.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-12 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

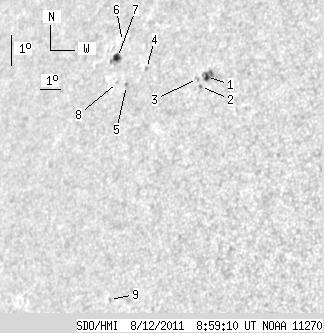

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.80 | 8.21 | 2.15 | 6.31 | 23.37 | 137.12 | -48.92 | 64.77 | 0.7672 | -771.5 | -585.7 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 23.04 | 136.99 | -49.06 | 65.23 | 0.7678 | -683.0 | -544.1 | |
| 0.00 | 1.72 | 0.00 | 1.33 | 23.27 | 136.72 | -49.33 | 64.99 | 0.7711 | -446.0 | -316.6 | |
| 0.00 | 1.62 | 0.00 | 1.33 | 23.37 | 133.99 | -52.06 | 65.47 | 0.7980 | -578.0 | -457.2 | |
| 0.00 | 1.72 | 0.00 | 1.42 | 22.75 | 133.24 | -52.80 | 66.37 | 0.8040 | 592.0 | 514.9 | |
| 0.00 | 0.45 | 0.00 | 0.38 | 24.09 | 132.23 | -53.81 | 64.92 | 0.8156 | 520.0 | 455.0 | |
| 4.15 | 7.67 | 3.53 | 6.53 | 23.57 | 132.27 | -53.78 | 65.55 | 0.8144 | 675.8 | 486.8 | |
| 0.00 | 0.36 | 0.00 | 0.30 | 22.80 | 132.72 | -53.33 | 66.41 | 0.8090 | 568.0 | 517.8 | |
| 0.00 | 1.62 | 0.00 | 1.27 | 16.15 | 135.33 | -50.71 | 74.39 | 0.7742 | -533.0 | -334.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
