SDO HMI 2011-08-12 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.30 | 24.37 | 5.95 | 19.32 | 22.90 | 134.97 | -50.52 | 65.72 | 0.7820 | -55.2 | -216.0 | |
|
previous
or next observation for the same group /

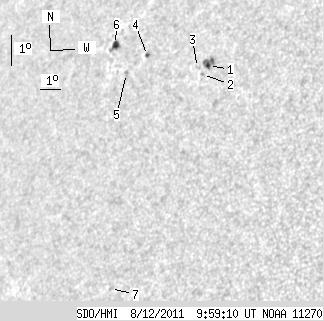

back to the solar disc SDO HMI 2011-08-12 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 9.12 | 1.30 | 6.94 | 23.36 | 137.19 | -48.31 | 64.64 | 0.7610 | -804.4 | -596.7 | |
| 0.00 | 1.53 | 0.00 | 1.17 | 23.05 | 137.03 | -48.46 | 65.07 | 0.7618 | -650.0 | -492.9 | |
| 0.00 | 1.53 | 0.00 | 1.18 | 23.25 | 136.68 | -48.81 | 64.90 | 0.7658 | -555.0 | -354.0 | |
| 1.62 | 1.99 | 1.31 | 1.61 | 23.41 | 134.00 | -51.49 | 65.30 | 0.7926 | -469.7 | -390.4 | |
| 0.00 | 1.81 | 0.00 | 1.48 | 22.77 | 133.23 | -52.27 | 66.26 | 0.7989 | 667.0 | 525.2 | |
| 3.97 | 6.77 | 3.34 | 5.69 | 23.61 | 132.14 | -53.35 | 65.42 | 0.8106 | 643.7 | 506.4 | |
| 0.00 | 1.62 | 0.00 | 1.25 | 16.13 | 135.33 | -50.16 | 74.35 | 0.7683 | -500.0 | -308.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
