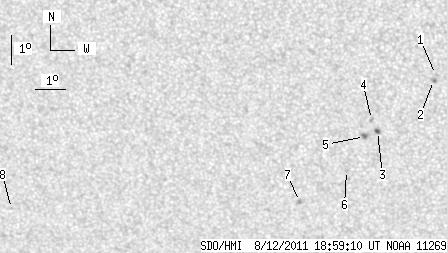

SDO HMI 2011-08-12 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.50 | 14.41 | 2.52 | 8.15 | -20.99 | 173.78 | -6.74 | 167.04 | 0.4772 | 242.0 | 103.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-12 18:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.20 | -18.64 | 176.93 | -3.59 | 172.05 | 0.4305 | 706.0 | 558.0 | |
| 0.00 | 2.25 | 0.00 | 1.24 | -18.84 | 176.86 | -3.66 | 171.97 | 0.4338 | 857.0 | 785.4 | |
| 2.43 | 2.52 | 1.36 | 1.41 | -20.59 | 175.00 | -5.52 | 168.80 | 0.4656 | 770.7 | 739.0 | |
| 0.00 | 1.98 | 0.00 | 1.11 | -20.18 | 174.82 | -5.70 | 168.25 | 0.4599 | 885.0 | 748.0 | |
| 2.07 | 2.80 | 1.16 | 1.57 | -20.77 | 174.57 | -5.95 | 168.03 | 0.4695 | 731.7 | 771.5 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -21.94 | 173.93 | -6.59 | 167.38 | 0.4893 | -559.0 | -513.0 | |
| 0.00 | 2.25 | 0.00 | 1.30 | -23.05 | 172.31 | -8.21 | 165.04 | 0.5113 | -1090.0 | -802.0 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -23.56 | 162.46 | -18.06 | 150.18 | 0.5736 | -634.0 | -451.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
