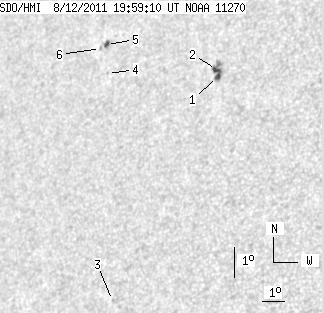

SDO HMI 2011-08-12 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.94 | 18.30 | 6.38 | 13.07 | 23.11 | 135.31 | -44.66 | 63.92 | 0.7215 | -114.9 | -247.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-12 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.25 | 11.63 | 2.25 | 8.07 | 23.28 | 137.29 | -42.68 | 63.08 | 0.7007 | -763.7 | -623.5 | |
| 2.89 | -1.00 | 2.00 | -1.00 | 23.49 | 137.16 | -42.81 | 62.83 | 0.7028 | -709.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.69 | 16.03 | 135.07 | -44.90 | 73.78 | 0.7089 | -500.0 | -381.1 | |
| 0.00 | 0.72 | 0.00 | 0.54 | 22.98 | 132.24 | -47.73 | 64.99 | 0.7540 | 471.0 | 382.1 | |
| 2.80 | 3.70 | 2.13 | 2.81 | 23.88 | 131.76 | -48.21 | 63.95 | 0.7611 | 778.7 | 655.3 | |
| 0.00 | 1.26 | 0.00 | 0.96 | 23.73 | 131.53 | -48.44 | 64.20 | 0.7631 | 429.0 | 342.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
