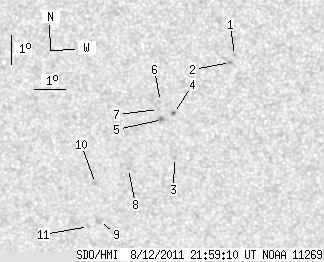

SDO HMI 2011-08-12 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 18.02 | 0.50 | 10.19 | -21.78 | 174.14 | -4.72 | 171.04 | 0.4817 | 174.0 | 85.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-12 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.58 | 177.04 | -1.82 | 175.93 | 0.4268 | 853.0 | 612.2 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -18.82 | 176.91 | -1.95 | 175.69 | 0.4307 | 925.0 | 761.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -22.07 | 175.03 | -3.83 | 172.62 | 0.4841 | 604.0 | 514.8 | |
| 0.90 | 1.53 | 0.50 | 0.85 | -20.55 | 175.04 | -3.83 | 172.18 | 0.4609 | 801.0 | 687.3 | |
| 0.00 | 3.70 | 0.00 | 2.07 | -20.76 | 174.67 | -4.19 | 171.51 | 0.4649 | 908.0 | 639.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -20.15 | 174.62 | -4.24 | 171.20 | 0.4556 | 484.0 | 464.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -20.42 | 174.55 | -4.31 | 171.15 | 0.4600 | 881.0 | 698.0 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -22.46 | 173.50 | -5.36 | 169.88 | 0.4936 | -783.0 | -665.8 | |
| 0.00 | 3.43 | 0.00 | 1.99 | -24.34 | 172.45 | -6.41 | 168.76 | 0.5242 | -763.0 | -588.5 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -23.00 | 172.38 | -6.48 | 168.08 | 0.5048 | -1000.0 | -644.8 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -24.52 | 172.07 | -6.79 | 168.20 | 0.5279 | -682.0 | -557.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
