SDO HMI 2011-08-13 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 20.28 | 1.47 | 12.73 | 20.68 | 136.93 | -35.89 | 64.51 | 0.6128 | -449.3 | -452.7 | |
|
previous
or next observation for the same group /

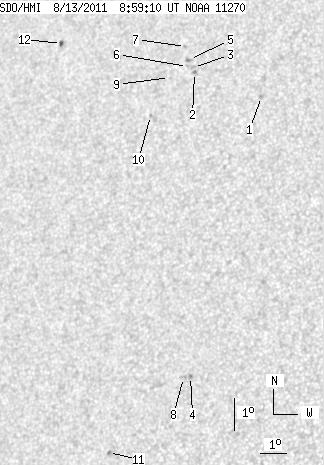

back to the solar disc SDO HMI 2011-08-13 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.10 | 22.77 | 140.20 | -32.62 | 59.23 | 0.5808 | 615.0 | 509.6 | |
| 0.00 | 1.53 | 0.00 | 0.96 | 23.36 | 137.35 | -35.47 | 59.90 | 0.6180 | -890.0 | -761.8 | |
| 0.00 | 1.62 | 0.00 | 1.02 | 23.51 | 137.26 | -35.56 | 59.71 | 0.6198 | -800.0 | -676.9 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 13.96 | 139.39 | -33.44 | 74.58 | 0.5568 | -846.0 | -658.2 | |
| 0.00 | 2.62 | 0.00 | 1.66 | 23.76 | 137.02 | -35.80 | 59.47 | 0.6238 | -765.0 | -593.7 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 23.53 | 137.01 | -35.81 | 59.82 | 0.6228 | -648.0 | -528.9 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 24.15 | 136.73 | -36.09 | 59.03 | 0.6292 | -609.0 | -494.2 | |
| 0.00 | 2.80 | 0.00 | 1.67 | 13.91 | 139.13 | -33.69 | 74.73 | 0.5603 | -599.0 | -486.1 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 23.14 | 136.40 | -36.43 | 60.72 | 0.6282 | -607.0 | -493.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 21.90 | 136.00 | -36.82 | 62.78 | 0.6276 | -642.0 | -541.0 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 11.45 | 136.66 | -36.16 | 79.50 | 0.5903 | -753.0 | -671.4 | |
| 2.17 | 2.62 | 1.47 | 1.78 | 23.90 | 131.52 | -41.30 | 61.75 | 0.6874 | 639.9 | 597.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
