SDO HMI 2011-08-13 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 13.77 | 1.07 | 8.55 | 20.06 | 135.38 | -35.24 | 65.31 | 0.6029 | -199.8 | -176.5 | |
|
previous
or next observation for the same group /

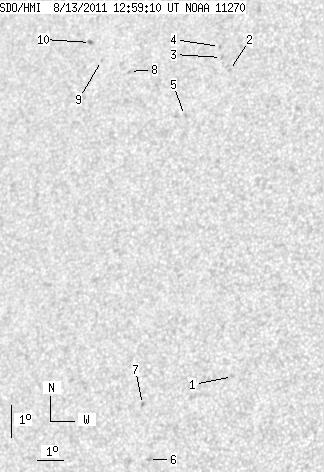

back to the solar disc SDO HMI 2011-08-13 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.73 | 13.93 | 139.46 | -31.16 | 73.92 | 0.5247 | -863.0 | -624.9 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 23.39 | 137.33 | -33.30 | 58.64 | 0.5923 | -882.0 | -695.9 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 23.78 | 136.89 | -33.73 | 58.29 | 0.5995 | -696.0 | -588.8 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 24.12 | 136.71 | -33.91 | 57.87 | 0.6035 | -610.0 | -392.9 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 21.87 | 135.96 | -34.66 | 61.78 | 0.6012 | -712.0 | -576.4 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 11.23 | 136.74 | -33.88 | 79.56 | 0.5581 | -865.0 | -713.7 | |
| 0.00 | 1.80 | 0.00 | 1.08 | 12.88 | 136.28 | -34.35 | 76.71 | 0.5673 | 768.0 | 633.8 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 23.10 | 133.35 | -37.27 | 61.17 | 0.6381 | 626.0 | 497.2 | |
| 0.00 | 1.26 | 0.00 | 0.82 | 23.37 | 132.09 | -38.54 | 61.35 | 0.6540 | 553.0 | 413.5 | |
| 1.62 | 1.98 | 1.07 | 1.31 | 23.91 | 131.43 | -39.20 | 60.87 | 0.6637 | 625.2 | 445.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
