SDO HMI 2011-08-13 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.61 | 0.00 | 6.99 | 19.27 | 135.75 | -32.66 | 65.29 | 0.5678 | -447.0 | -371.0 | |
|
previous
or next observation for the same group /

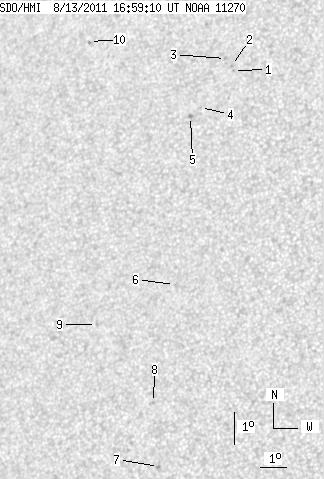

back to the solar disc SDO HMI 2011-08-13 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.43 | 23.45 | 137.27 | -31.15 | 57.19 | 0.5667 | -851.0 | -698.0 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 23.60 | 137.15 | -31.26 | 57.03 | 0.5690 | -826.0 | -570.5 | |
| 0.00 | 1.35 | 0.00 | 0.82 | 23.81 | 136.86 | -31.55 | 56.89 | 0.5737 | -837.0 | -673.9 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 22.21 | 136.31 | -32.10 | 59.81 | 0.5714 | -558.0 | -431.3 | |
| 0.00 | 1.53 | 0.00 | 0.93 | 21.91 | 136.00 | -32.41 | 60.49 | 0.5736 | -757.0 | -630.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 16.68 | 136.54 | -31.87 | 69.17 | 0.5432 | -642.0 | -557.5 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 11.09 | 136.81 | -31.60 | 79.43 | 0.5251 | -828.0 | -700.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 13.03 | 136.37 | -32.04 | 75.90 | 0.5350 | 879.0 | 669.7 | |
| 0.00 | 1.62 | 0.00 | 0.98 | 15.27 | 133.86 | -34.55 | 72.62 | 0.5755 | -739.0 | -519.1 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 24.01 | 131.31 | -37.10 | 59.75 | 0.6401 | 689.0 | 644.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
