SDO HMI 2011-08-13 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.50 | 0.00 | 7.97 | 18.01 | 136.14 | -31.17 | 66.99 | 0.5443 | -411.2 | -354.4 | |
|
previous
or next observation for the same group /

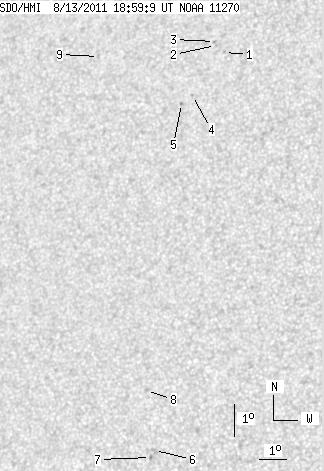

back to the solar disc SDO HMI 2011-08-13 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.64 | 23.60 | 137.16 | -30.14 | 56.25 | 0.5555 | -647.0 | -585.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 23.81 | 136.77 | -30.54 | 56.20 | 0.5615 | -830.0 | -616.0 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 23.93 | 136.70 | -30.61 | 56.05 | 0.5631 | -627.0 | -510.4 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 22.19 | 136.29 | -31.01 | 59.18 | 0.5576 | -644.0 | -543.3 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 21.91 | 135.94 | -31.36 | 59.86 | 0.5605 | -789.0 | -585.3 | |
| 0.00 | 3.15 | 0.00 | 1.81 | 11.20 | 136.85 | -30.45 | 79.02 | 0.5084 | -751.0 | -660.5 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 10.97 | 136.74 | -30.57 | 79.48 | 0.5098 | -779.0 | -682.1 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 13.00 | 136.33 | -30.97 | 75.65 | 0.5196 | 852.0 | 609.5 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 23.19 | 132.32 | -34.98 | 59.91 | 0.6113 | 514.0 | 439.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
