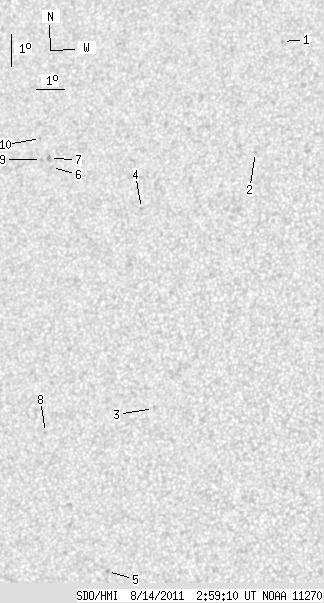

SDO HMI 2011-08-14 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.25 | 0.00 | 7.13 | 21.53 | 134.89 | -28.00 | 58.57 | 0.5201 | 113.3 | 172.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-14 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.62 | 27.77 | 140.38 | -22.51 | 42.55 | 0.5030 | 683.0 | 524.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 24.17 | 140.12 | -22.77 | 48.70 | 0.4719 | 748.0 | 471.8 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 16.03 | 137.83 | -25.06 | 66.80 | 0.4448 | -584.0 | -537.2 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 22.21 | 136.36 | -26.53 | 55.85 | 0.5017 | -728.0 | -636.4 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.98 | 136.81 | -26.08 | 78.46 | 0.4423 | -998.0 | -801.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 23.33 | 132.73 | -30.16 | 56.76 | 0.5537 | 664.0 | 501.0 | |
| 0.00 | 2.98 | 0.00 | 1.77 | 23.61 | 132.58 | -30.31 | 56.41 | 0.5572 | 856.0 | 657.7 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 15.10 | 134.13 | -28.76 | 70.79 | 0.4938 | -750.0 | -573.6 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 23.56 | 132.29 | -30.60 | 56.70 | 0.5605 | 719.0 | 532.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 24.22 | 132.07 | -30.82 | 55.78 | 0.5671 | 523.0 | 426.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
