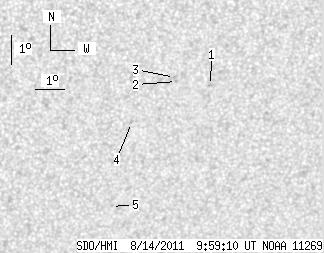

SDO HMI 2011-08-14 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.86 | 0.00 | 2.82 | -21.15 | 173.99 | 14.94 | 207.56 | 0.5230 | 118.4 | 142.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-14 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.59 | 175.47 | 16.41 | 210.32 | 0.5260 | 657.0 | 532.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -20.41 | 174.30 | 15.25 | 208.70 | 0.5152 | 637.0 | 547.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -20.27 | 174.22 | 15.17 | 208.71 | 0.5129 | 705.0 | 478.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -21.77 | 172.92 | 13.87 | 205.25 | 0.5238 | -728.0 | -610.0 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -24.70 | 172.55 | 13.50 | 202.32 | 0.5605 | -679.0 | -564.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
