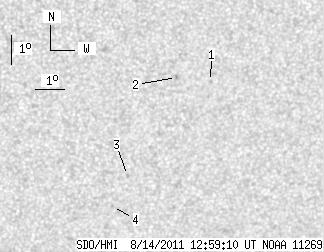

SDO HMI 2011-08-14 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.76 | 0.00 | 3.41 | -22.19 | 173.85 | 16.44 | 208.90 | 0.5470 | -32.5 | 58.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-14 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.90 | -20.57 | 175.38 | 17.97 | 212.63 | 0.5378 | 554.0 | 510.9 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -20.39 | 174.20 | 16.79 | 211.10 | 0.5264 | 761.0 | 589.9 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -23.74 | 172.92 | 15.52 | 206.05 | 0.5598 | -785.0 | -584.9 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -24.82 | 172.54 | 15.13 | 204.60 | 0.5713 | -660.0 | -433.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
