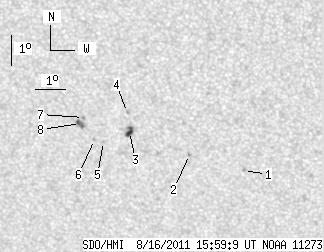

SDO HMI 2011-08-16 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.82 | 18.18 | 5.03 | 10.36 | -17.10 | 111.65 | -17.66 | 143.98 | 0.4949 | -77.4 | -97.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-16 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.61 | -18.23 | 115.57 | -13.74 | 151.64 | 0.4770 | 788.0 | 658.2 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -17.75 | 113.83 | -15.48 | 148.17 | 0.4840 | -676.0 | -587.3 | |
| 4.95 | 6.39 | 2.81 | 3.63 | -17.05 | 111.90 | -17.41 | 144.26 | 0.4916 | 800.5 | 635.8 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -16.42 | 111.89 | -17.41 | 143.46 | 0.4841 | 943.0 | 791.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -17.41 | 110.99 | -18.31 | 143.33 | 0.5041 | -728.0 | -541.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -17.36 | 110.70 | -18.61 | 142.83 | 0.5061 | -747.0 | -660.5 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -16.64 | 110.40 | -18.90 | 141.48 | 0.5004 | -830.0 | -653.0 | |
| 3.87 | 4.23 | 2.22 | 2.43 | -16.85 | 110.28 | -19.02 | 141.57 | 0.5039 | -834.6 | -898.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
