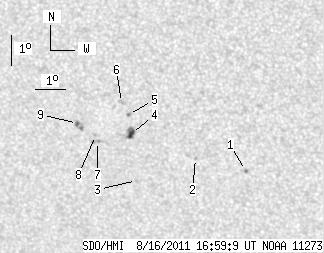

SDO HMI 2011-08-16 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.31 | 24.84 | 3.02 | 14.12 | -17.11 | 111.57 | -17.18 | 144.72 | 0.4908 | 41.7 | -113.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-16 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 1.17 | 0.20 | 0.66 | -18.20 | 115.64 | -13.11 | 152.73 | 0.4722 | 843.2 | 641.0 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -17.85 | 114.03 | -14.73 | 149.55 | 0.4795 | -804.0 | -691.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -18.66 | 111.99 | -16.76 | 147.16 | 0.5059 | -617.0 | -499.2 | |
| 3.24 | 6.30 | 1.84 | 3.57 | -17.09 | 111.98 | -16.78 | 145.30 | 0.4866 | 877.0 | 703.7 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -16.46 | 111.94 | -16.82 | 144.46 | 0.4793 | 828.0 | 760.3 | |
| 0.00 | 2.79 | 0.00 | 1.57 | -16.07 | 111.74 | -17.02 | 143.65 | 0.4763 | 842.0 | 615.6 | |
| 0.00 | 3.60 | 0.00 | 2.06 | -17.40 | 110.81 | -17.94 | 143.88 | 0.5006 | -859.0 | -704.7 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -17.20 | 110.77 | -17.99 | 143.56 | 0.4986 | -828.0 | -570.4 | |
| 1.71 | 5.67 | 0.98 | 3.24 | -16.82 | 110.20 | -18.55 | 142.24 | 0.4993 | -785.1 | -751.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
