SDO HMI 2011-08-16 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.80 | 31.14 | 6.08 | 17.58 | -17.12 | 111.72 | -15.93 | 146.76 | 0.4803 | 223.6 | -278.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-16 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

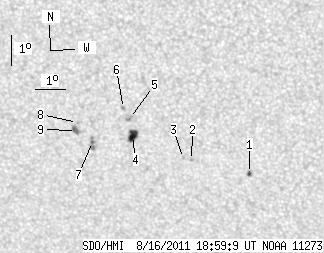

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 1.98 | 0.80 | 1.11 | -18.23 | 115.81 | -11.83 | 155.07 | 0.4640 | 735.3 | 757.8 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -17.84 | 113.94 | -13.70 | 151.32 | 0.4717 | -866.0 | -648.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -17.78 | 113.68 | -13.96 | 150.80 | 0.4728 | -652.0 | -520.6 | |
| 8.01 | 9.81 | 4.51 | 5.52 | -17.07 | 112.07 | -15.58 | 147.23 | 0.4763 | 906.1 | 565.2 | |
| 0.00 | 2.52 | 0.00 | 1.41 | -16.51 | 112.01 | -15.63 | 146.47 | 0.4696 | 1061.0 | 777.2 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -16.19 | 111.84 | -15.80 | 145.79 | 0.4670 | 946.0 | 755.7 | |
| 1.35 | 6.57 | 0.77 | 3.74 | -17.32 | 110.72 | -16.93 | 145.35 | 0.4908 | -881.7 | -761.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -16.70 | 110.28 | -17.37 | 143.90 | 0.4872 | -814.0 | -646.6 | |
| 0.00 | 5.40 | 0.00 | 3.07 | -16.97 | 110.22 | -17.43 | 144.14 | 0.4909 | -970.0 | -782.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
