SDO HMI 2011-08-17 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.17 | 29.89 | 6.18 | 16.58 | -17.39 | 112.87 | -11.46 | 155.03 | 0.4514 | 351.5 | -44.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-17 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

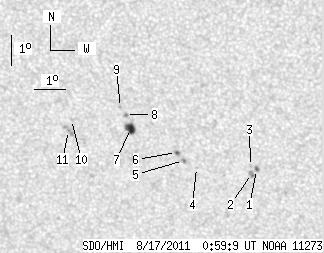

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.80 | 1.98 | 0.99 | 1.09 | -18.29 | 116.29 | -8.04 | 162.51 | 0.4439 | 872.1 | 917.5 | |
| 0.00 | 3.24 | 0.00 | 1.79 | -18.42 | 116.12 | -8.21 | 162.27 | 0.4468 | 981.0 | 717.9 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -18.19 | 116.10 | -8.23 | 162.06 | 0.4434 | 792.0 | 646.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.26 | 114.35 | -9.98 | 158.62 | 0.4536 | -363.0 | -302.0 | |
| 0.36 | 1.89 | 0.20 | 1.05 | -18.03 | 113.94 | -10.39 | 157.64 | 0.4527 | -839.2 | -710.8 | |
| 1.17 | 2.07 | 0.65 | 1.15 | -17.77 | 113.73 | -10.60 | 156.99 | 0.4502 | -802.7 | -865.2 | |
| 7.48 | 10.18 | 4.14 | 5.64 | -17.01 | 112.28 | -12.05 | 153.48 | 0.4489 | 961.5 | 547.2 | |
| 0.36 | 1.89 | 0.20 | 1.04 | -16.55 | 112.15 | -12.18 | 152.74 | 0.4434 | 997.0 | 872.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -16.32 | 112.00 | -12.33 | 152.21 | 0.4413 | 847.0 | 617.6 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -16.76 | 110.38 | -13.95 | 149.71 | 0.4596 | -739.0 | -552.8 | |
| 0.00 | 5.40 | 0.00 | 3.02 | -17.13 | 110.25 | -14.08 | 149.90 | 0.4654 | -1046.0 | -844.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
