SDO HMI 2011-08-17 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.65 | 68.03 | 11.75 | 96.83 | -20.72 | 56.58 | -65.01 | 115.15 | 0.9374 | 394.3 | 59.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-17 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

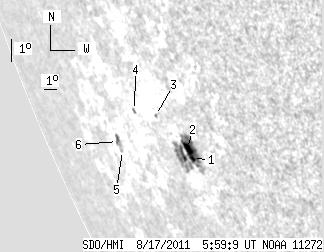

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 58.48 | 2.94 | 80.14 | -20.95 | 57.61 | -63.98 | 115.66 | 0.9326 | 510.7 | 117.2 | |
| 6.49 | -1.00 | 8.81 | -1.00 | -20.63 | 57.49 | -64.10 | 115.29 | 0.9327 | 604.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.82 | -19.73 | 55.74 | -65.85 | 113.88 | 0.9409 | 23.0 | 23.4 | |
| 0.00 | 1.71 | 0.00 | 2.69 | -19.76 | 53.98 | -67.61 | 113.47 | 0.9500 | 50.0 | -34.3 | |
| 0.00 | 1.44 | 0.00 | 2.67 | -21.40 | 51.25 | -70.34 | 114.47 | 0.9645 | -229.0 | -181.9 | |
| 0.00 | 5.14 | 0.00 | 9.51 | -21.12 | 51.07 | -70.52 | 114.15 | 0.9650 | -457.0 | -257.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
