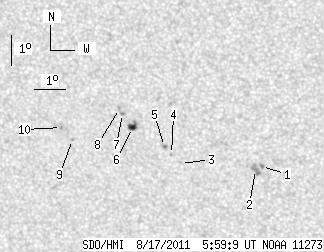

SDO HMI 2011-08-17 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.60 | 24.32 | 2.52 | 13.37 | -17.65 | 113.90 | -7.69 | 162.79 | 0.4343 | 159.7 | 311.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-17 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.04 | -18.31 | 116.60 | -4.99 | 168.95 | 0.4326 | 930.0 | 781.6 | |
| 0.00 | 6.85 | 0.00 | 3.76 | -18.41 | 116.40 | -5.19 | 168.57 | 0.4348 | 899.0 | 794.7 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -18.24 | 114.00 | -7.59 | 163.41 | 0.4414 | -656.0 | -441.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -17.94 | 113.72 | -7.87 | 162.63 | 0.4382 | -802.0 | -569.8 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -17.68 | 113.51 | -8.08 | 161.99 | 0.4353 | -1011.0 | -800.8 | |
| 4.60 | 6.13 | 2.52 | 3.36 | -17.07 | 112.51 | -9.09 | 159.43 | 0.4313 | 907.3 | 884.6 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -16.61 | 112.21 | -9.38 | 158.40 | 0.4263 | 963.0 | 721.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -16.45 | 112.12 | -9.47 | 158.07 | 0.4244 | 948.0 | 723.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.51 | 110.54 | -11.05 | 155.90 | 0.4494 | -796.0 | -649.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.12 | 110.21 | -11.38 | 154.88 | 0.4460 | -922.0 | -863.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
