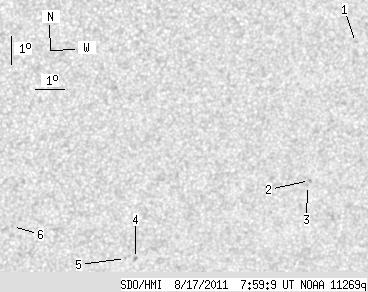

SDO HMI 2011-08-17 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.75 | 0.00 | 4.19 | -25.25 | 138.92 | 18.42 | 208.58 | 0.6026 | 679.2 | 554.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-17 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.49 | -19.80 | 143.58 | 23.09 | 220.12 | 0.5747 | 548.0 | 430.8 | |
| 0.00 | 1.26 | 0.00 | 0.79 | -24.54 | 142.76 | 22.26 | 213.99 | 0.6186 | 733.0 | 614.6 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -24.71 | 142.72 | 22.22 | 213.77 | 0.6203 | 671.0 | 522.4 | |
| 0.00 | 1.80 | 0.00 | 1.12 | -27.10 | 136.96 | 16.47 | 204.55 | 0.6096 | 776.0 | 640.9 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -27.08 | 136.60 | 16.11 | 204.09 | 0.6074 | 693.0 | 550.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -25.79 | 132.49 | 11.99 | 199.26 | 0.5693 | 654.0 | 447.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
