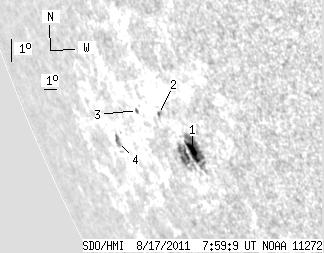

SDO HMI 2011-08-17 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.27 | 62.81 | 13.47 | 84.88 | -20.72 | 56.69 | -63.81 | 115.49 | 0.9308 | 492.4 | 80.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-17 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.73 | 54.52 | 12.67 | 71.50 | -20.75 | 57.48 | -63.02 | 115.73 | 0.9267 | 635.7 | 137.6 | |
| 0.00 | 1.62 | 0.00 | 2.23 | -19.67 | 55.77 | -64.72 | 114.13 | 0.9346 | 27.0 | 14.4 | |
| 0.54 | 1.89 | 0.80 | 2.81 | -19.73 | 54.07 | -66.43 | 113.73 | 0.9439 | 64.3 | -35.6 | |
| 0.00 | 4.78 | 0.00 | 8.34 | -21.10 | 51.05 | -69.45 | 114.38 | 0.9603 | -515.0 | -275.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
