SDO HMI 2011-08-17 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.48 | 24.66 | 3.52 | 13.47 | -17.98 | 114.46 | -1.63 | 176.26 | 0.4222 | 157.2 | -62.8 | |
|
previous
or next observation for the same group /

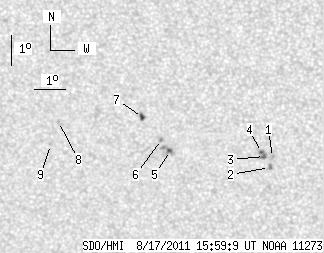

back to the solar disc SDO HMI 2011-08-17 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.79 | -18.34 | 116.99 | 0.90 | 182.01 | 0.4258 | 771.0 | 697.6 | |
| 0.00 | 2.34 | 0.00 | 1.28 | -18.68 | 116.89 | 0.80 | 181.78 | 0.4311 | 865.0 | 759.6 | |
| 2.07 | 6.21 | 1.13 | 3.39 | -18.31 | 116.73 | 0.64 | 181.44 | 0.4251 | 897.7 | 727.2 | |
| 0.72 | -3.00 | 0.39 | -3.00 | -18.17 | 116.64 | 0.55 | 181.23 | 0.4230 | 962.8 | 999999 | |
| 1.71 | 7.11 | 0.93 | 3.89 | -18.11 | 113.73 | -2.36 | 174.68 | 0.4236 | -945.8 | -820.4 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -17.75 | 113.45 | -2.64 | 173.95 | 0.4183 | -961.0 | -838.5 | |
| 1.98 | 3.33 | 1.07 | 1.81 | -17.02 | 112.85 | -3.24 | 172.37 | 0.4079 | 835.0 | 706.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -17.18 | 110.18 | -5.91 | 166.33 | 0.4182 | -836.0 | -642.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.95 | 109.89 | -6.20 | 166.16 | 0.4311 | -709.0 | -530.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
