SDO HMI 2011-08-17 22:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.42 | 43.92 | 6.76 | 23.99 | -17.92 | 113.97 | 1.75 | 183.92 | 0.4209 | -37.1 | -364.2 | |
|
previous
or next observation for the same group /

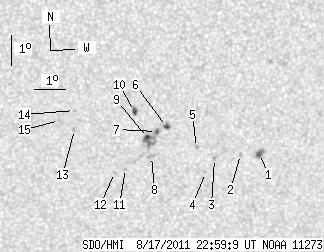

back to the solar disc SDO HMI 2011-08-17 22:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.51 | 5.31 | 1.93 | 2.92 | -18.43 | 117.03 | 4.81 | 190.60 | 0.4345 | 971.1 | 847.2 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -18.46 | 116.42 | 4.20 | 189.27 | 0.4332 | 827.0 | 613.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.59 | 115.59 | 3.37 | 187.42 | 0.4333 | 984.0 | 722.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.06 | 115.31 | 3.09 | 186.68 | 0.4401 | 825.0 | 608.5 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -18.21 | 115.00 | 2.79 | 186.25 | 0.4264 | 977.0 | 673.3 | |
| 2.16 | 3.60 | 1.17 | 1.96 | -17.51 | 114.04 | 1.82 | 184.22 | 0.4138 | -908.7 | -715.9 | |
| 1.62 | 17.82 | 0.88 | 9.72 | -17.67 | 113.72 | 1.50 | 183.46 | 0.4161 | -916.7 | -746.5 | |
| 0.00 | 2.70 | 0.00 | 1.48 | -18.51 | 113.57 | 1.35 | 183.00 | 0.4292 | -816.0 | -664.1 | |
| 1.89 | -7.00 | 1.03 | -7.00 | -17.87 | 113.44 | 1.22 | 182.78 | 0.4190 | -1064.6 | 999999 | |
| 3.24 | 3.96 | 1.75 | 2.14 | -17.01 | 113.02 | 0.80 | 181.90 | 0.4049 | 883.8 | 599.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.91 | 112.74 | 0.52 | 181.14 | 0.4351 | -729.0 | -625.3 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -19.05 | 112.38 | 0.17 | 180.37 | 0.4372 | -762.0 | -563.7 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -17.60 | 111.11 | -1.11 | 177.45 | 0.4147 | -823.0 | -637.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.97 | 111.11 | -1.10 | 177.38 | 0.4046 | -762.0 | -611.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.31 | 110.63 | -1.58 | 176.30 | 0.4104 | -798.0 | -583.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
