SDO HMI 2011-08-17 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.32 | 42.75 | 7.26 | 23.37 | -18.03 | 114.20 | 2.54 | 185.67 | 0.4240 | -235.4 | -216.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-17 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

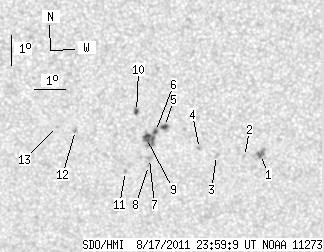

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 8.10 | 1.24 | 4.46 | -18.47 | 117.05 | 5.39 | 191.81 | 0.4368 | 1019.7 | 715.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.53 | 116.54 | 4.88 | 190.69 | 0.4362 | 719.0 | 565.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -18.49 | 115.64 | 3.98 | 188.77 | 0.4332 | 768.0 | 687.0 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -18.25 | 115.09 | 3.43 | 187.65 | 0.4282 | 903.0 | 643.9 | |
| 2.61 | 3.69 | 1.42 | 2.01 | -17.51 | 113.96 | 2.30 | 185.31 | 0.4145 | -930.8 | -701.6 | |
| 1.62 | 16.20 | 0.88 | 8.84 | -17.67 | 113.68 | 2.01 | 184.62 | 0.4167 | -971.8 | -788.5 | |
| 0.00 | 2.79 | 0.00 | 1.53 | -18.57 | 113.49 | 1.83 | 184.05 | 0.4308 | -897.0 | -717.0 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -18.81 | 113.46 | 1.80 | 183.94 | 0.4345 | -660.0 | -501.3 | |
| 4.68 | -6.00 | 2.55 | -6.00 | -17.90 | 113.39 | 1.73 | 183.93 | 0.4201 | -952.2 | 999999 | |
| 2.16 | 2.52 | 1.17 | 1.37 | -17.00 | 113.07 | 1.40 | 183.32 | 0.4054 | 906.2 | 948.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -19.01 | 112.73 | 1.06 | 182.31 | 0.4370 | -746.0 | -639.2 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -17.63 | 111.13 | -0.54 | 178.76 | 0.4149 | -811.0 | -716.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.50 | 110.56 | -1.11 | 177.43 | 0.4131 | -588.0 | -528.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
