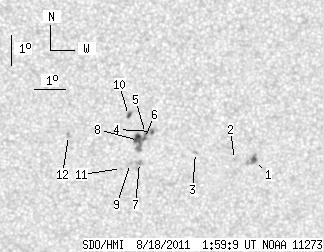

SDO HMI 2011-08-18 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.94 | 43.30 | 8.16 | 23.69 | -17.98 | 114.05 | 3.48 | 187.80 | 0.4250 | -340.8 | -336.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.52 | 6.57 | 1.39 | 3.63 | -18.55 | 117.14 | 6.58 | 194.27 | 0.4424 | 910.9 | 774.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.50 | 116.50 | 5.93 | 192.95 | 0.4394 | 820.0 | 532.6 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -18.26 | 115.24 | 4.67 | 190.37 | 0.4315 | 806.0 | 533.2 | |
| 1.53 | 23.50 | 0.83 | 12.82 | -17.54 | 113.85 | 3.28 | 187.56 | 0.4169 | -983.3 | -743.1 | |
| 1.08 | -4.00 | 0.59 | -4.00 | -17.61 | 113.63 | 3.06 | 187.03 | 0.4175 | -916.8 | 999999 | |
| 1.44 | -4.00 | 0.79 | -4.00 | -17.77 | 113.60 | 3.03 | 186.91 | 0.4201 | -887.6 | 999999 | |
| 0.00 | 3.42 | 0.00 | 1.88 | -18.58 | 113.45 | 2.89 | 186.36 | 0.4324 | -941.0 | -698.9 | |
| 6.39 | -4.00 | 3.49 | -4.00 | -17.84 | 113.41 | 2.84 | 186.47 | 0.4208 | -965.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.61 | 113.16 | 2.60 | 185.72 | 0.4325 | -848.0 | -660.1 | |
| 1.98 | 2.70 | 1.07 | 1.46 | -17.00 | 113.08 | 2.51 | 185.93 | 0.4070 | 870.8 | 820.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -18.77 | 112.88 | 2.31 | 185.06 | 0.4347 | -646.0 | -507.5 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -17.66 | 111.17 | 0.61 | 181.40 | 0.4155 | -788.0 | -680.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
