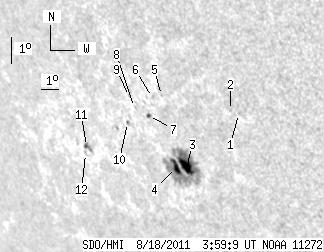

SDO HMI 2011-08-18 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.70 | 100.23 | 20.83 | 95.56 | -20.77 | 56.72 | -52.74 | 119.39 | 0.8559 | 463.2 | 169.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.61 | -18.78 | 60.95 | -48.51 | 119.03 | 0.8133 | 485.0 | 391.1 | |
| 0.00 | 0.81 | 0.00 | 0.69 | -18.71 | 60.59 | -48.88 | 118.79 | 0.8163 | 367.0 | 389.4 | |
| 10.90 | 85.38 | 10.23 | 80.63 | -20.89 | 57.39 | -52.08 | 119.79 | 0.8513 | 830.6 | 198.1 | |
| 6.57 | -3.00 | 6.26 | -3.00 | -20.98 | 56.81 | -52.66 | 119.64 | 0.8562 | 384.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.83 | -18.54 | 57.16 | -52.31 | 117.12 | 0.8450 | 533.0 | 466.7 | |
| 0.00 | 0.81 | 0.00 | 0.76 | -18.66 | 56.63 | -52.84 | 117.03 | 0.8497 | 569.0 | 520.0 | |
| 1.17 | 2.16 | 1.12 | 2.06 | -19.31 | 56.11 | -53.35 | 117.54 | 0.8560 | 358.4 | 351.6 | |
| 0.00 | 0.81 | 0.00 | 0.78 | -19.11 | 55.44 | -54.02 | 117.06 | 0.8607 | 444.0 | 383.7 | |
| 0.00 | 0.63 | 0.00 | 0.61 | -18.76 | 55.34 | -54.13 | 116.63 | 0.8604 | 339.0 | 292.0 | |
| 1.26 | 1.62 | 1.25 | 1.60 | -19.68 | 54.77 | -54.69 | 117.42 | 0.8676 | 282.7 | 260.8 | |
| 1.80 | 4.77 | 1.97 | 5.20 | -20.79 | 51.75 | -57.72 | 117.50 | 0.8929 | -644.0 | -570.5 | |
| 0.00 | 1.62 | 0.00 | 1.79 | -21.05 | 51.53 | -57.94 | 117.69 | 0.8951 | -234.0 | -204.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
