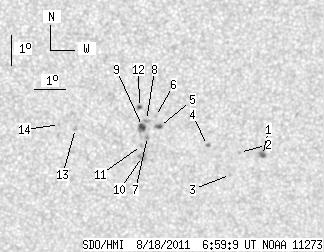

SDO HMI 2011-08-18 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.09 | 34.12 | 4.98 | 18.74 | -18.03 | 113.91 | 6.08 | 193.44 | 0.4332 | -369.3 | -369.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 06:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.35 | 3.51 | 0.75 | 1.95 | -18.66 | 117.23 | 9.40 | 199.87 | 0.4571 | 980.9 | 812.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.55 | 116.47 | 8.65 | 198.48 | 0.4516 | 694.0 | 604.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -19.29 | 116.22 | 8.39 | 197.46 | 0.4612 | 650.0 | 553.1 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -18.30 | 115.43 | 7.60 | 196.55 | 0.4429 | 684.0 | 519.0 | |
| 2.34 | 2.79 | 1.28 | 1.53 | -17.64 | 113.86 | 6.03 | 193.64 | 0.4265 | -892.1 | -751.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -17.30 | 113.72 | 5.90 | 193.53 | 0.4208 | -686.0 | -543.1 | |
| 0.00 | 2.43 | 0.00 | 1.33 | -17.97 | 113.49 | 5.66 | 192.65 | 0.4302 | -875.0 | -744.6 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -17.43 | 113.44 | 5.61 | 192.83 | 0.4218 | -882.0 | -777.4 | |
| 3.78 | 5.58 | 2.07 | 3.05 | -17.63 | 113.32 | 5.49 | 192.46 | 0.4244 | -1043.3 | -877.8 | |
| 0.00 | 5.86 | 0.00 | 3.23 | -18.64 | 113.35 | 5.52 | 192.01 | 0.4400 | -764.0 | -771.6 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -18.27 | 113.30 | 5.48 | 192.10 | 0.4342 | -851.0 | -695.2 | |
| 1.62 | 2.07 | 0.88 | 1.13 | -17.00 | 113.20 | 5.37 | 192.54 | 0.4142 | 749.1 | 639.0 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -17.68 | 111.18 | 3.35 | 187.66 | 0.4192 | -889.0 | -685.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.54 | 110.66 | 2.84 | 186.54 | 0.4161 | -706.0 | -622.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
