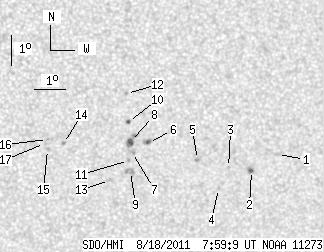

SDO HMI 2011-08-18 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.19 | 39.35 | 4.49 | 21.62 | -18.05 | 113.69 | 6.41 | 194.12 | 0.4350 | -221.3 | -379.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.95 | -18.16 | 118.08 | 10.80 | 202.99 | 0.4577 | 715.0 | 467.3 | |
| 1.62 | 1.98 | 0.90 | 1.10 | -18.68 | 117.26 | 9.99 | 200.99 | 0.4604 | 870.6 | 950.6 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.56 | 116.51 | 9.23 | 199.62 | 0.4547 | 734.0 | 542.1 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -19.26 | 116.22 | 8.94 | 198.54 | 0.4635 | 649.0 | 541.2 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -18.27 | 115.49 | 8.21 | 197.81 | 0.4453 | 901.0 | 653.1 | |
| 1.71 | 4.23 | 0.94 | 2.32 | -17.68 | 113.89 | 6.61 | 194.86 | 0.4293 | -785.3 | -743.4 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -18.01 | 113.39 | 6.11 | 193.59 | 0.4324 | -864.0 | -724.2 | |
| 3.42 | 7.39 | 1.87 | 4.04 | -17.64 | 113.31 | 6.03 | 193.64 | 0.4265 | -1079.3 | -831.8 | |
| 0.00 | 6.49 | 0.00 | 3.58 | -18.64 | 113.35 | 6.07 | 193.15 | 0.4420 | -779.0 | -696.4 | |
| 1.44 | 1.53 | 0.78 | 0.83 | -16.97 | 113.22 | 5.95 | 193.84 | 0.4159 | 690.2 | 665.0 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -18.27 | 113.27 | 5.99 | 193.19 | 0.4360 | -899.0 | -697.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -16.04 | 113.13 | 5.85 | 194.20 | 0.4012 | 876.0 | 686.4 | |
| 0.00 | 2.70 | 0.00 | 1.49 | -18.94 | 112.68 | 5.40 | 191.61 | 0.4443 | -729.0 | -479.9 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -17.68 | 111.17 | 3.89 | 188.88 | 0.4205 | -840.0 | -606.7 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -17.88 | 110.66 | 3.38 | 187.67 | 0.4225 | -787.0 | -621.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.54 | 110.66 | 3.38 | 187.77 | 0.4172 | -871.0 | -628.7 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -17.68 | 110.56 | 3.28 | 187.52 | 0.4191 | -542.0 | -441.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
