SDO HMI 2011-08-18 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.78 | 29.25 | 2.10 | 16.20 | -18.07 | 114.32 | 9.24 | 199.94 | 0.4480 | -183.9 | -264.4 | |
|
previous
or next observation for the same group /

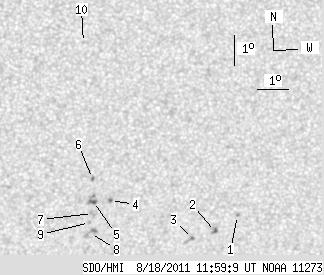

back to the solar disc SDO HMI 2011-08-18 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.71 | -18.28 | 118.04 | 12.96 | 206.85 | 0.4734 | 818.0 | 683.9 | |
| 1.35 | 2.97 | 0.76 | 1.67 | -18.80 | 117.36 | 12.28 | 205.13 | 0.4759 | 785.3 | 708.8 | |
| 0.36 | 3.33 | 0.20 | 1.87 | -19.02 | 116.62 | 11.54 | 203.60 | 0.4743 | 816.2 | 639.1 | |
| 0.45 | 1.44 | 0.25 | 0.79 | -17.68 | 113.88 | 8.79 | 199.44 | 0.4394 | -936.8 | -814.0 | |
| 1.62 | 7.11 | 0.89 | 3.91 | -17.71 | 113.33 | 8.25 | 198.30 | 0.4370 | -977.3 | -702.7 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -16.94 | 113.26 | 8.18 | 198.75 | 0.4252 | 671.0 | 635.9 | |
| 0.00 | 2.97 | 0.00 | 1.64 | -18.11 | 113.32 | 8.23 | 197.98 | 0.4429 | -792.0 | -600.8 | |
| 0.00 | 6.57 | 0.00 | 3.65 | -18.78 | 113.28 | 8.20 | 197.43 | 0.4527 | -522.0 | -641.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.41 | 113.23 | 8.15 | 197.59 | 0.4470 | -860.0 | -641.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -12.50 | 112.81 | 7.73 | 201.77 | 0.3557 | -708.0 | -484.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
