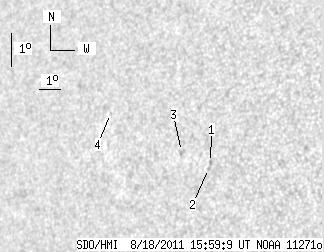

SDO HMI 2011-08-18 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.66 | 0.00 | 4.84 | 8.31 | 55.50 | -47.37 | 84.95 | 0.7329 | -259.5 | -258.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.96 | 8.12 | 56.73 | -46.14 | 85.25 | 0.7186 | -625.0 | -485.3 | |
| 0.00 | 1.35 | 0.00 | 0.96 | 7.93 | 56.67 | -46.20 | 85.51 | 0.7194 | -550.0 | -388.5 | |
| 0.00 | 3.24 | 0.00 | 2.36 | 8.34 | 55.39 | -47.48 | 84.90 | 0.7345 | -343.0 | -268.1 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 9.19 | 51.88 | -50.99 | 83.65 | 0.7741 | 480.0 | 390.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
