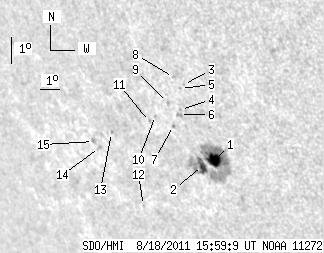

SDO HMI 2011-08-18 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.98 | 109.08 | 16.38 | 89.91 | -20.84 | 56.66 | -46.22 | 122.50 | 0.8019 | 478.5 | 198.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.42 | 91.98 | 10.12 | 75.22 | -20.91 | 57.36 | -45.51 | 122.93 | 0.7962 | 852.2 | 233.5 | |
| 7.56 | -1.00 | 6.26 | -1.00 | -21.14 | 56.71 | -46.17 | 122.85 | 0.8030 | 508.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -18.41 | 56.84 | -46.03 | 119.82 | 0.7893 | 601.0 | 521.4 | |
| 0.00 | 1.08 | 0.00 | 0.88 | -19.28 | 56.39 | -46.48 | 120.59 | 0.7973 | 516.0 | 471.4 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -18.56 | 56.65 | -46.22 | 119.90 | 0.7917 | 593.0 | 496.4 | |
| 0.00 | 2.34 | 0.00 | 1.92 | -19.46 | 56.28 | -46.59 | 120.74 | 0.7991 | 519.0 | 447.0 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -19.87 | 55.84 | -47.03 | 120.98 | 0.8049 | 545.0 | 437.5 | |
| 0.00 | 1.26 | 0.00 | 1.02 | -18.22 | 56.45 | -46.42 | 119.39 | 0.7920 | 639.0 | 447.9 | |
| 0.00 | 1.26 | 0.00 | 1.04 | -19.10 | 55.85 | -47.02 | 120.11 | 0.8014 | 623.0 | 441.1 | |
| 0.00 | 0.72 | 0.00 | 0.61 | -19.60 | 55.08 | -47.79 | 120.31 | 0.8104 | 410.0 | 356.6 | |
| 0.00 | 1.17 | 0.00 | 0.99 | -19.84 | 54.70 | -48.18 | 120.39 | 0.8148 | 292.0 | 219.2 | |
| 0.00 | 1.26 | 0.00 | 1.15 | -22.85 | 53.03 | -49.84 | 122.90 | 0.8409 | -511.0 | -378.8 | |
| 0.00 | 0.90 | 0.00 | 0.81 | -20.41 | 52.56 | -50.31 | 120.03 | 0.8352 | -717.0 | -592.6 | |
| 0.00 | 1.98 | 0.00 | 1.82 | -21.00 | 51.67 | -51.21 | 120.28 | 0.8447 | -665.0 | -407.5 | |
| 0.00 | 2.52 | 0.00 | 2.32 | -20.82 | 51.44 | -51.43 | 119.99 | 0.8459 | -593.0 | -503.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
