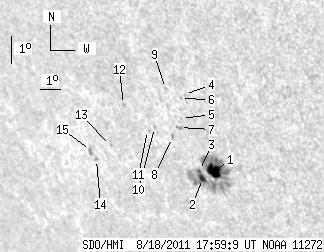

SDO HMI 2011-08-18 17:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.90 | 112.84 | 15.15 | 91.09 | -20.81 | 56.70 | -45.06 | 123.08 | 0.7918 | 494.2 | 196.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 17:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.32 | 97.09 | 10.63 | 77.86 | -20.91 | 57.32 | -44.45 | 123.51 | 0.7868 | 903.0 | 240.7 | |
| 4.50 | -1.00 | 3.65 | -1.00 | -21.20 | 56.70 | -45.06 | 123.51 | 0.7937 | 573.3 | 999999 | |
| 1.08 | -1.00 | 0.87 | -1.00 | -20.94 | 56.67 | -45.10 | 123.19 | 0.7927 | 485.5 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -18.37 | 56.90 | -44.86 | 120.37 | 0.7782 | 527.0 | 498.0 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -19.20 | 56.48 | -45.28 | 121.12 | 0.7861 | 561.0 | 493.4 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -18.52 | 56.67 | -45.09 | 120.43 | 0.7811 | 603.0 | 484.0 | |
| 0.00 | 2.34 | 0.00 | 1.88 | -19.52 | 56.27 | -45.49 | 121.37 | 0.7895 | 508.0 | 432.2 | |
| 0.00 | 1.53 | 0.00 | 1.24 | -19.90 | 55.81 | -45.95 | 121.56 | 0.7954 | 574.0 | 457.5 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -18.24 | 56.08 | -45.68 | 119.80 | 0.7853 | 429.0 | 298.2 | |
| 0.00 | 1.17 | 0.00 | 0.96 | -19.63 | 55.07 | -46.70 | 120.88 | 0.8009 | 382.0 | 307.8 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -19.77 | 54.68 | -47.08 | 120.84 | 0.8049 | 246.0 | 274.8 | |
| 0.00 | 1.35 | 0.00 | 1.13 | -18.98 | 53.84 | -47.92 | 119.54 | 0.8090 | -501.0 | -431.9 | |
| 0.00 | 1.17 | 0.00 | 1.02 | -20.46 | 52.60 | -49.17 | 120.62 | 0.8259 | -772.0 | -603.8 | |
| 0.00 | 1.89 | 0.00 | 1.70 | -21.03 | 51.64 | -50.13 | 120.80 | 0.8361 | -638.0 | -466.0 | |
| 0.00 | 2.70 | 0.00 | 2.43 | -20.74 | 51.46 | -50.30 | 120.40 | 0.8364 | -616.0 | -466.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
