SDO HMI 2011-08-18 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.31 | 813.91 | 100.95 | 532.10 | 15.90 | 60.83 | -40.38 | 73.31 | 0.6517 | -139.0 | -27.5 | |
|
previous
or next observation for the same group /

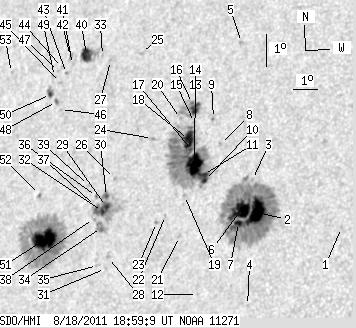

back to the solar disc SDO HMI 2011-08-18 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.64 | 15.35 | 68.21 | -33.00 | 72.34 | 0.5533 | -638.0 | -591.0 | |
| 25.46 | 273.97 | 15.72 | 169.78 | 15.60 | 64.90 | -36.31 | 72.92 | 0.5989 | -1287.4 | -396.1 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 16.59 | 64.53 | -36.68 | 71.39 | 0.6063 | -146.0 | -114.4 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 12.74 | 65.08 | -36.13 | 77.64 | 0.5909 | -752.0 | -531.4 | |
| 0.00 | 1.62 | 0.00 | 1.04 | 20.77 | 63.00 | -38.21 | 65.36 | 0.6386 | -693.0 | -567.6 | |
| 23.48 | -2.00 | 14.61 | -2.00 | 15.61 | 64.27 | -36.94 | 73.06 | 0.6073 | -849.8 | 999999 | |
| 3.51 | -2.00 | 2.18 | -2.00 | 15.24 | 64.27 | -36.94 | 73.67 | 0.6065 | -852.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 17.57 | 63.02 | -38.19 | 70.28 | 0.6284 | -562.0 | -418.1 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 18.35 | 62.53 | -38.68 | 69.22 | 0.6367 | 505.0 | 472.4 | |
| 0.72 | 195.96 | 0.46 | 126.37 | 16.43 | 62.65 | -38.56 | 72.18 | 0.6303 | 239.9 | -201.9 | |
| 1.44 | -10.00 | 0.92 | -10.00 | 16.61 | 62.56 | -38.65 | 71.92 | 0.6318 | -979.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 12.94 | 63.09 | -38.12 | 77.64 | 0.6181 | -485.0 | -349.1 | |
| 6.93 | 24.74 | 4.49 | 16.10 | 18.60 | 61.72 | -39.49 | 69.08 | 0.6475 | -912.7 | -169.6 | |
| 22.22 | -10.00 | 14.26 | -10.00 | 16.89 | 62.13 | -39.08 | 71.60 | 0.6380 | -1103.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 18.17 | 61.79 | -39.42 | 69.72 | 0.6454 | -744.0 | -669.1 | |
| 0.45 | -13.00 | 0.29 | -13.00 | 18.75 | 61.55 | -39.66 | 68.91 | 0.6500 | -540.8 | 999999 | |
| 1.17 | -10.00 | 0.75 | -10.00 | 17.34 | 61.89 | -39.32 | 70.97 | 0.6421 | -865.4 | 999999 | |
| 13.14 | -10.00 | 8.50 | -10.00 | 17.63 | 61.69 | -39.52 | 70.57 | 0.6454 | -888.2 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 15.91 | 61.95 | -39.26 | 73.15 | 0.6381 | 44.0 | 75.2 | |
| 0.00 | 1.35 | 0.00 | 0.88 | 18.25 | 61.19 | -40.02 | 69.77 | 0.6531 | -310.0 | -219.1 | |
| 0.00 | 1.89 | 0.00 | 1.21 | 14.65 | 62.03 | -39.18 | 75.11 | 0.6347 | -544.0 | -406.0 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 15.25 | 61.33 | -39.88 | 74.32 | 0.6448 | -319.0 | -279.9 | |
| 0.00 | 1.26 | 0.00 | 0.82 | 15.01 | 61.01 | -40.20 | 74.75 | 0.6484 | -428.0 | -336.9 | |
| 0.00 | 2.07 | 0.00 | 1.37 | 17.55 | 60.20 | -41.01 | 71.07 | 0.6636 | 865.0 | 661.4 | |
| 0.00 | 2.61 | 0.00 | 1.77 | 20.16 | 58.94 | -42.27 | 67.61 | 0.6852 | -436.0 | -365.2 | |
| 0.00 | 1.26 | 0.00 | 0.84 | 16.21 | 58.95 | -42.26 | 73.33 | 0.6764 | 754.0 | 627.6 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 19.81 | 57.69 | -43.52 | 68.45 | 0.6989 | 802.0 | 694.1 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 13.80 | 59.28 | -41.93 | 76.86 | 0.6686 | 715.0 | 616.0 | |
| 2.70 | 46.25 | 1.81 | 30.99 | 15.34 | 58.83 | -42.38 | 74.65 | 0.6763 | 1018.7 | 686.7 | |
| 2.07 | -29.00 | 1.39 | -29.00 | 15.64 | 58.76 | -42.45 | 74.21 | 0.6778 | 746.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.84 | 13.45 | 59.23 | -41.98 | 77.38 | 0.6689 | 585.0 | 380.6 | |
| 2.07 | -29.00 | 1.39 | -29.00 | 15.17 | 58.71 | -42.51 | 74.91 | 0.6777 | 1005.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.75 | 19.93 | 57.28 | -43.93 | 68.38 | 0.7038 | 760.0 | 632.3 | |
| 0.00 | 9.99 | 0.00 | 6.70 | 14.68 | 58.78 | -42.43 | 75.62 | 0.6760 | 839.0 | 663.9 | |
| 0.00 | 1.89 | 0.00 | 1.26 | 13.52 | 58.88 | -42.33 | 77.33 | 0.6734 | 583.0 | 528.9 | |
| 0.00 | 1.62 | 0.00 | 1.09 | 15.61 | 58.34 | -42.87 | 74.33 | 0.6829 | 725.0 | 564.8 | |
| 0.54 | -29.00 | 0.36 | -29.00 | 15.30 | 58.37 | -42.84 | 74.78 | 0.6820 | 661.3 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.46 | 14.93 | 58.38 | -42.83 | 75.32 | 0.6814 | 446.0 | 399.8 | |
| 0.00 | 1.26 | 0.00 | 0.86 | 15.92 | 57.91 | -43.30 | 73.96 | 0.6886 | 481.0 | 369.8 | |
| 11.97 | 19.88 | 8.41 | 13.95 | 19.91 | 56.57 | -44.64 | 68.59 | 0.7120 | 823.3 | 688.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 19.55 | 56.06 | -45.15 | 69.20 | 0.7170 | 652.0 | 560.6 | |
| 0.00 | 2.52 | 0.00 | 1.79 | 19.79 | 55.88 | -45.33 | 68.92 | 0.7195 | 652.0 | 499.4 | |
| 0.00 | 1.26 | 0.00 | 0.89 | 19.25 | 55.89 | -45.32 | 69.65 | 0.7183 | 810.0 | 690.6 | |
| 0.00 | 1.89 | 0.00 | 1.35 | 19.42 | 55.64 | -45.57 | 69.47 | 0.7214 | 283.0 | 339.9 | |
| 0.00 | 1.26 | 0.00 | 0.90 | 18.96 | 55.72 | -45.49 | 70.10 | 0.7196 | 737.0 | 632.4 | |
| 0.00 | 0.99 | 0.00 | 0.70 | 18.13 | 56.00 | -45.21 | 71.18 | 0.7149 | 624.0 | 476.0 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 19.28 | 55.51 | -45.70 | 69.69 | 0.7226 | 590.0 | 546.6 | |
| 1.98 | 2.16 | 1.40 | 1.53 | 18.36 | 55.74 | -45.47 | 70.91 | 0.7183 | 696.6 | 588.5 | |
| 0.00 | 1.98 | 0.00 | 1.42 | 19.12 | 55.38 | -45.83 | 69.94 | 0.7237 | 717.0 | 463.6 | |
| 2.16 | 5.22 | 1.54 | 3.73 | 18.55 | 55.40 | -45.81 | 70.71 | 0.7225 | 692.1 | 580.3 | |
| 31.31 | 185.97 | 21.77 | 129.45 | 14.13 | 56.44 | -44.77 | 76.73 | 0.7039 | 1035.6 | 285.3 | |
| 0.99 | 2.43 | 0.70 | 1.71 | 15.47 | 55.86 | -45.35 | 74.91 | 0.7124 | 482.9 | 480.8 | |
| 0.00 | 1.17 | 0.00 | 0.87 | 19.07 | 53.37 | -47.84 | 70.39 | 0.7460 | 475.0 | 365.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
