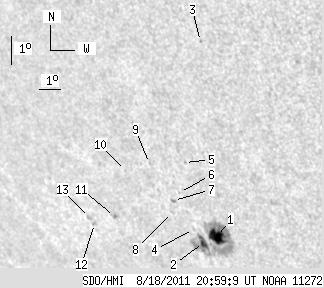

SDO HMI 2011-08-18 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.60 | 104.64 | 16.83 | 81.97 | -20.81 | 56.70 | -43.40 | 124.01 | 0.7770 | 525.8 | 222.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.67 | 90.33 | 11.38 | 70.32 | -20.89 | 57.34 | -42.76 | 124.46 | 0.7716 | 930.9 | 288.9 | |
| 6.93 | -1.00 | 5.45 | -1.00 | -21.15 | 56.66 | -43.44 | 124.36 | 0.7791 | 579.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -14.35 | 58.55 | -41.56 | 117.31 | 0.7256 | 611.0 | 458.5 | |
| 0.00 | 1.08 | 0.00 | 0.85 | -20.74 | 56.36 | -43.74 | 123.72 | 0.7796 | 244.0 | 176.9 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -18.46 | 56.74 | -43.36 | 121.30 | 0.7645 | 569.0 | 438.2 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -19.51 | 56.17 | -43.93 | 122.21 | 0.7752 | 470.0 | 422.3 | |
| 0.00 | 2.16 | 0.00 | 1.70 | -19.81 | 55.80 | -44.31 | 122.35 | 0.7801 | 613.0 | 456.1 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -20.23 | 55.60 | -44.50 | 122.72 | 0.7840 | 242.0 | 195.6 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -18.64 | 55.12 | -44.99 | 120.63 | 0.7807 | 338.0 | 243.4 | |
| 0.00 | 0.63 | 0.00 | 0.51 | -18.98 | 53.89 | -46.21 | 120.39 | 0.7936 | -423.0 | -470.4 | |
| 0.00 | 3.15 | 0.00 | 2.65 | -20.62 | 52.73 | -47.37 | 121.67 | 0.8112 | -624.0 | -507.8 | |
| 0.00 | 1.35 | 0.00 | 1.17 | -20.96 | 51.62 | -48.49 | 121.50 | 0.8223 | -613.0 | -464.7 | |
| 0.00 | 2.07 | 0.00 | 1.80 | -20.78 | 51.45 | -48.65 | 121.22 | 0.8229 | -547.0 | -453.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
