SDO HMI 2011-08-18 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.13 | 27.36 | 2.90 | 15.38 | -18.26 | 113.27 | 13.16 | 207.17 | 0.4750 | -469.6 | -463.5 | |
|
previous
or next observation for the same group /

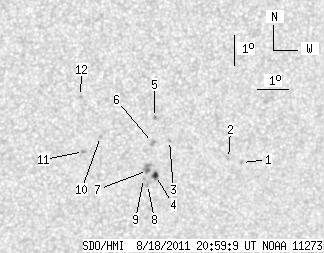

back to the solar disc SDO HMI 2011-08-18 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.87 | -18.49 | 116.29 | 16.19 | 212.03 | 0.5005 | 883.0 | 717.8 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -18.34 | 115.85 | 15.74 | 211.48 | 0.4951 | 819.0 | 597.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -17.67 | 113.84 | 13.74 | 208.84 | 0.4710 | -816.0 | -645.3 | |
| 3.15 | 5.13 | 1.78 | 2.90 | -18.83 | 113.47 | 13.37 | 207.00 | 0.4840 | -876.3 | -679.5 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -16.89 | 113.29 | 13.19 | 208.70 | 0.4565 | 553.0 | 469.6 | |
| 0.00 | 2.70 | 0.00 | 1.51 | -17.72 | 113.29 | 13.18 | 207.80 | 0.4677 | -1030.0 | -794.0 | |
| 1.98 | 6.57 | 1.12 | 3.70 | -18.66 | 113.20 | 13.09 | 206.69 | 0.4797 | -983.5 | -807.7 | |
| 0.00 | 1.89 | 0.00 | 1.07 | -19.13 | 113.23 | 13.13 | 206.30 | 0.4864 | -638.0 | -542.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -18.92 | 113.09 | 12.98 | 206.24 | 0.4826 | -771.0 | -678.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -17.48 | 111.58 | 11.47 | 204.89 | 0.4526 | -797.0 | -699.9 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -17.96 | 111.06 | 10.95 | 203.44 | 0.4561 | -939.0 | -801.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -16.13 | 110.85 | 10.75 | 204.80 | 0.4288 | -660.0 | -535.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
