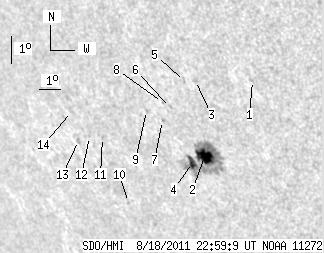

SDO HMI 2011-08-18 22:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.05 | 102.31 | 16.86 | 78.56 | -20.82 | 56.74 | -42.26 | 124.69 | 0.7665 | 520.9 | 262.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-18 22:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.45 | -18.12 | 60.15 | -38.85 | 123.63 | 0.7182 | 668.0 | 509.9 | |
| 15.75 | 88.45 | 12.00 | 67.58 | -20.90 | 57.28 | -41.72 | 125.09 | 0.7621 | 925.4 | 316.0 | |
| 0.00 | 2.07 | 0.00 | 1.53 | -18.31 | 57.71 | -41.29 | 122.33 | 0.7437 | 720.0 | 537.7 | |
| 6.30 | -2.00 | 4.86 | -2.00 | -21.16 | 56.66 | -42.34 | 125.01 | 0.7692 | 601.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.67 | -18.39 | 57.22 | -41.78 | 122.13 | 0.7489 | 369.0 | 332.1 | |
| 0.00 | 1.08 | 0.00 | 0.82 | -19.33 | 56.31 | -42.68 | 122.71 | 0.7626 | 596.0 | 494.4 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -19.81 | 55.80 | -43.20 | 122.97 | 0.7699 | 539.0 | 429.7 | |
| 0.00 | 0.90 | 0.00 | 0.69 | -19.19 | 56.01 | -42.99 | 122.37 | 0.7648 | 511.0 | 453.4 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -19.53 | 55.18 | -43.82 | 122.30 | 0.7742 | 459.0 | 404.5 | |
| 0.00 | 1.08 | 0.00 | 0.91 | -22.84 | 53.07 | -45.93 | 124.87 | 0.8093 | -466.0 | -409.0 | |
| 0.00 | 1.08 | 0.00 | 0.89 | -20.65 | 52.75 | -46.25 | 122.27 | 0.8017 | -664.0 | -556.8 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -20.67 | 52.12 | -46.87 | 121.98 | 0.8072 | -516.0 | -453.6 | |
| 0.00 | 1.89 | 0.00 | 1.60 | -20.87 | 51.52 | -47.48 | 121.89 | 0.8133 | -636.0 | -497.8 | |
| 0.00 | 1.53 | 0.00 | 1.28 | -19.88 | 51.58 | -47.42 | 120.82 | 0.8085 | -576.0 | -416.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
