SDO HMI 2011-08-18 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.05 | 845.12 | 98.76 | 531.03 | 15.82 | 61.03 | -37.41 | 72.74 | 0.6135 | -182.6 | -39.2 | |
|
previous
or next observation for the same group /

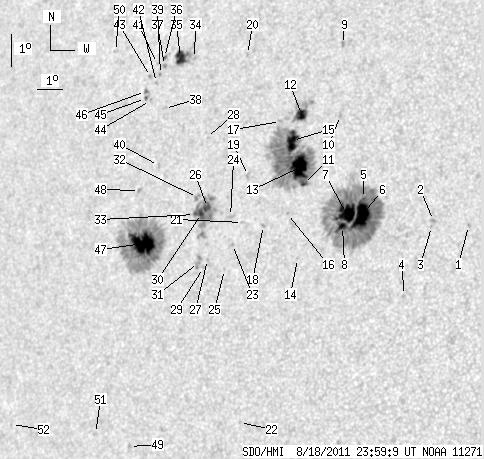

back to the solar disc SDO HMI 2011-08-18 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.77 | 15.52 | 68.88 | -29.57 | 70.73 | 0.5057 | -763.0 | -610.7 | |
| 0.00 | 2.07 | 0.00 | 1.20 | 15.60 | 67.59 | -30.86 | 71.13 | 0.5242 | -873.0 | -687.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 15.41 | 67.55 | -30.90 | 71.49 | 0.5242 | -674.0 | -534.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 13.25 | 66.89 | -31.56 | 75.77 | 0.5276 | -469.0 | -503.1 | |
| 0.81 | 293.46 | 0.48 | 176.05 | 16.11 | 64.88 | -33.57 | 71.22 | 0.5632 | -738.9 | -389.4 | |
| 24.75 | -5.00 | 14.79 | -5.00 | 15.58 | 64.90 | -33.54 | 72.13 | 0.5614 | -1348.9 | 999999 | |
| 22.32 | -5.00 | 13.42 | -5.00 | 15.61 | 64.33 | -34.12 | 72.28 | 0.5693 | -926.9 | 999999 | |
| 3.78 | -5.00 | 2.27 | -5.00 | 15.20 | 64.25 | -34.19 | 73.00 | 0.5692 | -930.4 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.56 | 20.79 | 62.98 | -35.46 | 64.20 | 0.6047 | -723.0 | -516.0 | |
| 0.00 | 2.25 | 0.00 | 1.38 | 18.60 | 63.46 | -34.98 | 67.55 | 0.5902 | -719.0 | -628.4 | |
| 0.72 | 208.51 | 0.44 | 129.69 | 16.39 | 62.51 | -35.94 | 71.53 | 0.5958 | 281.5 | -216.1 | |
| 9.72 | 23.58 | 6.06 | 14.71 | 18.52 | 61.94 | -36.51 | 68.25 | 0.6096 | -915.8 | -199.7 | |
| 26.46 | -11.00 | 16.36 | -11.00 | 16.90 | 62.24 | -36.20 | 70.78 | 0.6007 | -1182.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 14.12 | 62.73 | -35.72 | 75.27 | 0.5876 | -627.0 | -517.1 | |
| 14.31 | -11.00 | 8.92 | -11.00 | 17.70 | 61.78 | -36.67 | 69.62 | 0.6091 | -963.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 15.46 | 62.08 | -36.37 | 73.19 | 0.5992 | 638.0 | 471.8 | |
| 0.00 | 1.80 | 0.00 | 1.13 | 18.25 | 61.17 | -37.28 | 68.95 | 0.6186 | -409.0 | -259.3 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 15.03 | 61.22 | -37.22 | 74.11 | 0.6097 | -511.0 | -381.1 | |
| 0.00 | 2.43 | 0.00 | 1.54 | 16.51 | 60.30 | -38.15 | 71.97 | 0.6251 | 653.0 | 603.9 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 20.22 | 59.27 | -39.18 | 66.57 | 0.6484 | -731.0 | -614.1 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 15.06 | 60.38 | -38.07 | 74.25 | 0.6209 | 558.0 | 461.1 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 8.99 | 61.26 | -37.18 | 84.08 | 0.6024 | -693.0 | -496.8 | |
| 0.00 | 1.35 | 0.00 | 0.85 | 14.37 | 60.12 | -38.32 | 75.42 | 0.6229 | 806.0 | 642.8 | |
| 0.00 | 3.24 | 0.00 | 2.06 | 15.21 | 59.87 | -38.58 | 74.13 | 0.6279 | 494.0 | 283.0 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 13.58 | 59.96 | -38.49 | 76.70 | 0.6239 | 543.0 | 442.1 | |
| 4.59 | 49.86 | 2.96 | 32.12 | 15.42 | 58.89 | -39.56 | 74.02 | 0.6409 | 1064.8 | 715.6 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 13.84 | 59.23 | -39.22 | 76.42 | 0.6339 | 699.0 | 577.8 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 17.55 | 58.32 | -40.13 | 70.89 | 0.6527 | 557.0 | 601.7 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 13.58 | 59.11 | -39.33 | 76.84 | 0.6350 | 629.0 | 554.4 | |
| 2.70 | -26.00 | 1.74 | -26.00 | 15.22 | 58.69 | -39.76 | 74.37 | 0.6431 | 1025.1 | 999999 | |
| 0.00 | 5.40 | 0.00 | 3.47 | 13.72 | 58.88 | -39.56 | 76.66 | 0.6382 | 722.0 | 601.7 | |
| 0.00 | 3.60 | 0.00 | 2.33 | 15.69 | 58.41 | -40.04 | 73.69 | 0.6475 | 522.0 | 525.1 | |
| 1.08 | -26.00 | 0.70 | -26.00 | 15.17 | 58.41 | -40.04 | 74.50 | 0.6466 | 652.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 19.93 | 57.11 | -41.34 | 67.69 | 0.6735 | 943.0 | 838.0 | |
| 9.99 | 16.38 | 6.74 | 11.03 | 19.92 | 56.51 | -41.94 | 67.88 | 0.6806 | 883.8 | 818.7 | |
| 0.99 | 1.80 | 0.67 | 1.23 | 19.87 | 55.82 | -42.63 | 68.15 | 0.6885 | 617.7 | 564.6 | |
| 0.00 | 2.07 | 0.00 | 1.41 | 19.62 | 55.90 | -42.54 | 68.48 | 0.6869 | 778.0 | 722.5 | |
| 0.00 | 1.62 | 0.00 | 1.09 | 18.30 | 56.32 | -42.13 | 70.27 | 0.6789 | 677.0 | 534.2 | |
| 0.00 | 1.17 | 0.00 | 0.80 | 19.33 | 55.82 | -42.62 | 68.92 | 0.6872 | 783.0 | 695.1 | |
| 0.00 | 1.71 | 0.00 | 1.14 | 16.54 | 56.56 | -41.89 | 72.80 | 0.6723 | 709.0 | 535.9 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 19.66 | 55.58 | -42.86 | 68.51 | 0.6908 | 560.0 | 452.4 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 19.07 | 55.73 | -42.72 | 69.31 | 0.6876 | 748.0 | 657.8 | |
| 0.00 | 1.44 | 0.00 | 0.99 | 19.24 | 55.41 | -43.03 | 69.16 | 0.6917 | 540.0 | 479.9 | |
| 0.00 | 1.35 | 0.00 | 0.92 | 18.50 | 55.65 | -42.80 | 70.15 | 0.6873 | 715.0 | 611.2 | |
| 1.35 | 4.59 | 0.92 | 3.13 | 18.55 | 55.42 | -43.03 | 70.14 | 0.6902 | 616.7 | 632.0 | |
| 1.53 | -45.00 | 1.05 | -45.00 | 18.76 | 55.35 | -43.10 | 69.85 | 0.6914 | 704.4 | 999999 | |
| 31.95 | 187.36 | 21.24 | 124.71 | 14.13 | 56.52 | -41.93 | 76.40 | 0.6690 | 1121.4 | 316.0 | |
| 0.00 | 2.61 | 0.00 | 1.75 | 15.72 | 55.96 | -42.48 | 74.12 | 0.6782 | 655.0 | 480.6 | |
| 0.00 | 2.25 | 0.00 | 1.48 | 7.95 | 57.02 | -41.43 | 85.70 | 0.6595 | -674.0 | -480.7 | |
| 0.00 | 1.17 | 0.00 | 0.82 | 19.88 | 53.62 | -44.83 | 68.69 | 0.7139 | 486.0 | 410.5 | |
| 0.00 | 1.98 | 0.00 | 1.33 | 8.23 | 55.57 | -42.88 | 85.24 | 0.6781 | -181.0 | -234.8 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 8.20 | 51.94 | -46.51 | 85.15 | 0.7230 | 443.0 | 364.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
