SDO HMI 2011-08-18 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.60 | 108.35 | 16.37 | 82.16 | -20.74 | 56.88 | -41.56 | 125.03 | 0.7596 | 558.9 | 293.0 | |
|
previous
or next observation for the same group /

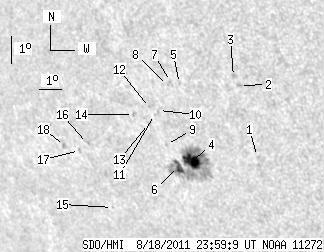

back to the solar disc SDO HMI 2011-08-18 23:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.65 | -20.51 | 60.20 | -38.24 | 126.89 | 0.7272 | 525.0 | 439.4 | |
| 0.00 | 1.89 | 0.00 | 1.33 | -18.14 | 60.13 | -38.32 | 124.00 | 0.7131 | 734.0 | 560.4 | |
| 0.00 | 2.16 | 0.00 | 1.52 | -17.85 | 59.95 | -38.49 | 123.54 | 0.7131 | 457.0 | 411.8 | |
| 15.48 | 89.18 | 11.69 | 67.48 | -20.92 | 57.28 | -41.16 | 125.46 | 0.7571 | 948.3 | 330.6 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -18.28 | 57.59 | -40.85 | 122.55 | 0.7392 | 644.0 | 510.4 | |
| 6.12 | -4.00 | 4.68 | -4.00 | -21.14 | 56.64 | -41.81 | 125.32 | 0.7643 | 623.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.80 | -18.24 | 57.22 | -41.23 | 122.29 | 0.7427 | 513.0 | 427.7 | |
| 0.00 | 0.63 | 0.00 | 0.47 | -18.39 | 57.05 | -41.40 | 122.36 | 0.7452 | 504.0 | 444.6 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -20.42 | 56.36 | -42.08 | 124.33 | 0.7629 | 274.0 | 221.2 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -19.28 | 56.39 | -42.06 | 123.01 | 0.7564 | 521.0 | 456.6 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -19.43 | 56.17 | -42.28 | 123.06 | 0.7593 | 531.0 | 448.4 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -19.21 | 56.02 | -42.43 | 122.72 | 0.7595 | 492.0 | 473.9 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -19.76 | 55.79 | -42.65 | 123.23 | 0.7646 | 514.0 | 437.8 | |
| 0.00 | 1.62 | 0.00 | 1.25 | -19.51 | 55.22 | -43.23 | 122.61 | 0.7687 | 460.0 | 376.4 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -22.86 | 52.97 | -45.47 | 125.14 | 0.8055 | -506.0 | -389.7 | |
| 0.00 | 0.45 | 0.00 | 0.37 | -20.71 | 52.69 | -45.76 | 122.59 | 0.7976 | -463.0 | -466.2 | |
| 0.00 | 1.53 | 0.00 | 1.27 | -20.99 | 52.20 | -46.25 | 122.65 | 0.8032 | -512.0 | -444.9 | |
| 0.00 | 2.61 | 0.00 | 2.19 | -20.88 | 51.53 | -46.91 | 122.19 | 0.8085 | -599.0 | -481.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
