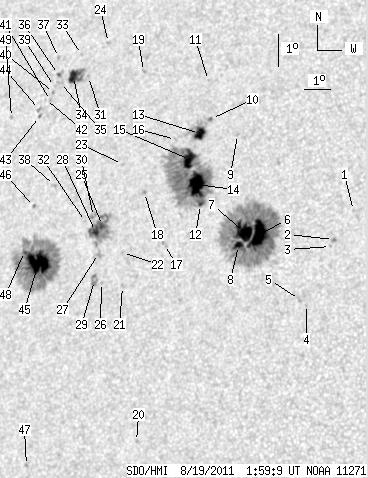

SDO HMI 2011-08-19 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 153.90 | 816.32 | 95.11 | 505.84 | 15.89 | 61.02 | -36.32 | 72.35 | 0.5994 | -223.8 | -31.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.57 | 16.51 | 68.23 | -29.12 | 68.62 | 0.5030 | -701.0 | -474.5 | |
| 0.00 | 1.98 | 0.00 | 1.14 | 15.58 | 67.66 | -29.69 | 70.67 | 0.5077 | -865.0 | -731.6 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 15.36 | 67.58 | -29.77 | 71.13 | 0.5079 | -681.0 | -554.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 13.54 | 66.98 | -30.37 | 74.87 | 0.5111 | -547.0 | -538.4 | |
| 0.00 | 2.43 | 0.00 | 1.40 | 13.68 | 66.71 | -30.64 | 74.69 | 0.5154 | -653.0 | -540.3 | |
| 28.17 | 275.17 | 16.64 | 163.08 | 15.57 | 64.89 | -32.45 | 71.80 | 0.5463 | -1343.1 | -415.8 | |
| 22.50 | -6.00 | 13.37 | -6.00 | 15.62 | 64.32 | -33.03 | 71.90 | 0.5544 | -957.6 | 999999 | |
| 4.77 | -6.00 | 2.84 | -6.00 | 15.19 | 64.21 | -33.14 | 72.71 | 0.5546 | -904.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 18.58 | 63.49 | -33.86 | 67.11 | 0.5754 | -778.0 | -549.7 | |
| 0.90 | 1.98 | 0.55 | 1.21 | 19.01 | 62.38 | -34.97 | 66.87 | 0.5915 | 460.9 | 300.2 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 20.18 | 61.96 | -35.38 | 65.16 | 0.6011 | -551.0 | -452.5 | |
| 1.08 | 205.05 | 0.66 | 125.78 | 16.34 | 62.54 | -34.81 | 71.25 | 0.5806 | 198.3 | -245.4 | |
| 9.81 | 26.10 | 6.03 | 16.07 | 18.52 | 62.02 | -35.32 | 67.82 | 0.5943 | -940.4 | -140.3 | |
| 25.02 | -12.00 | 15.27 | -12.00 | 16.95 | 62.26 | -35.09 | 70.33 | 0.5861 | -1196.4 | 999999 | |
| 13.86 | -12.00 | 8.52 | -12.00 | 17.69 | 61.82 | -35.53 | 69.25 | 0.5942 | -977.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 18.27 | 61.13 | -36.21 | 68.56 | 0.6050 | -269.0 | -124.9 | |
| 0.00 | 2.79 | 0.00 | 1.71 | 15.03 | 61.41 | -35.94 | 73.80 | 0.5925 | -569.0 | -399.9 | |
| 0.00 | 1.80 | 0.00 | 1.12 | 16.57 | 60.30 | -37.05 | 71.58 | 0.6108 | 788.0 | 651.2 | |
| 0.00 | 1.62 | 0.00 | 1.04 | 20.28 | 59.31 | -38.04 | 66.08 | 0.6346 | -565.0 | -543.2 | |
| 0.00 | 1.44 | 0.00 | 0.88 | 8.99 | 61.27 | -36.08 | 84.08 | 0.5869 | -648.0 | -503.9 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 13.64 | 60.03 | -37.32 | 76.40 | 0.6083 | 654.0 | 495.8 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 14.68 | 59.83 | -37.52 | 74.76 | 0.6128 | 738.0 | 492.3 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 17.36 | 59.23 | -38.12 | 70.63 | 0.6267 | 670.0 | 598.3 | |
| 0.00 | 1.62 | 0.00 | 1.06 | 21.07 | 57.60 | -39.75 | 65.51 | 0.6579 | 660.0 | 505.9 | |
| 2.70 | 43.21 | 1.71 | 27.42 | 15.44 | 58.87 | -38.48 | 73.75 | 0.6269 | 1046.6 | 731.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 13.71 | 59.19 | -38.16 | 76.45 | 0.6197 | 702.0 | 560.8 | |
| 0.00 | 3.78 | 0.00 | 2.39 | 14.58 | 58.89 | -38.45 | 75.11 | 0.6250 | 851.0 | 649.2 | |
| 4.23 | -25.00 | 2.69 | -25.00 | 15.24 | 58.63 | -38.71 | 74.12 | 0.6296 | 1027.5 | 999999 | |
| 0.00 | 7.02 | 0.00 | 4.44 | 13.75 | 58.90 | -38.45 | 76.44 | 0.6235 | 582.0 | 625.4 | |
| 0.00 | 2.97 | 0.00 | 1.90 | 15.69 | 58.45 | -38.90 | 73.45 | 0.6329 | 668.0 | 523.5 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 19.96 | 57.10 | -40.24 | 67.32 | 0.6604 | 745.0 | 718.2 | |
| 0.00 | 0.63 | 0.00 | 0.40 | 15.51 | 58.17 | -39.18 | 73.79 | 0.6362 | 449.0 | 395.0 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 20.62 | 56.60 | -40.75 | 66.51 | 0.6684 | 513.0 | 389.6 | |
| 8.73 | 17.01 | 5.79 | 11.27 | 19.91 | 56.48 | -40.87 | 67.58 | 0.6678 | 926.4 | 809.5 | |
| 0.00 | 2.61 | 0.00 | 1.74 | 19.69 | 55.99 | -41.36 | 68.06 | 0.6730 | 672.0 | 623.5 | |
| 1.17 | 2.88 | 0.78 | 1.93 | 19.93 | 55.83 | -41.52 | 67.76 | 0.6756 | 698.2 | 529.7 | |
| 0.00 | 1.62 | 0.00 | 1.09 | 20.45 | 55.66 | -41.69 | 67.05 | 0.6790 | 572.0 | 462.4 | |
| 0.00 | 1.62 | 0.00 | 1.06 | 16.52 | 56.64 | -40.70 | 72.59 | 0.6575 | 841.0 | 653.1 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 19.55 | 55.78 | -41.57 | 68.33 | 0.6752 | 648.0 | 577.4 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 19.36 | 55.79 | -41.55 | 68.59 | 0.6745 | 743.0 | 655.1 | |
| 0.00 | 1.98 | 0.00 | 1.33 | 19.10 | 55.74 | -41.60 | 68.98 | 0.6744 | 743.0 | 638.0 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 19.12 | 55.52 | -41.82 | 69.02 | 0.6771 | 522.0 | 452.4 | |
| 0.99 | 1.53 | 0.66 | 1.03 | 18.58 | 55.43 | -41.92 | 69.83 | 0.6769 | 607.8 | 625.5 | |
| 0.00 | 2.07 | 0.00 | 1.39 | 18.79 | 55.37 | -41.98 | 69.53 | 0.6782 | 757.0 | 602.8 | |
| 29.07 | 184.89 | 19.01 | 120.98 | 14.13 | 56.54 | -40.80 | 76.24 | 0.6547 | 1170.9 | 351.5 | |
| 0.00 | 1.35 | 0.00 | 0.89 | 15.82 | 55.98 | -41.37 | 73.79 | 0.6645 | 691.0 | 640.6 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 7.95 | 57.09 | -40.26 | 85.74 | 0.6441 | -647.0 | -454.1 | |
| 0.90 | -45.00 | 0.59 | -45.00 | 14.42 | 55.90 | -41.45 | 75.90 | 0.6634 | 427.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 18.45 | 54.25 | -43.10 | 70.30 | 0.6907 | 597.0 | 454.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
