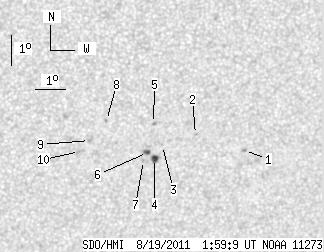

SDO HMI 2011-08-19 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.76 | 19.44 | 3.29 | 11.09 | -18.46 | 113.04 | 15.69 | 211.18 | 0.4968 | -531.9 | -405.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.89 | -18.68 | 116.45 | 19.10 | 216.15 | 0.5275 | 797.0 | 702.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -18.08 | 114.73 | 17.38 | 214.33 | 0.5055 | 671.0 | 537.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.41 | 113.66 | 16.31 | 212.29 | 0.5008 | -704.0 | -549.7 | |
| 3.69 | 4.68 | 2.11 | 2.68 | -18.84 | 113.44 | 16.09 | 211.47 | 0.5044 | -800.2 | -562.1 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -17.66 | 113.29 | 15.94 | 212.55 | 0.4884 | -637.0 | -607.9 | |
| 2.07 | 3.06 | 1.18 | 1.75 | -18.63 | 113.18 | 15.83 | 211.29 | 0.4998 | -909.7 | -800.1 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -18.89 | 113.07 | 15.73 | 210.83 | 0.5023 | -776.0 | -661.5 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -17.51 | 111.73 | 14.38 | 210.11 | 0.4740 | -888.0 | -776.2 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -18.16 | 111.22 | 13.87 | 208.53 | 0.4788 | -856.0 | -733.2 | |
| 0.00 | 2.88 | 0.00 | 1.63 | -18.52 | 110.92 | 13.57 | 207.65 | 0.4815 | -850.0 | -593.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
