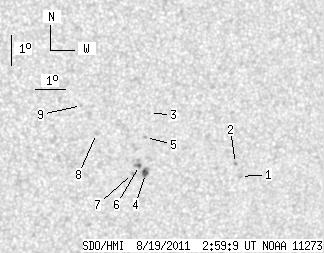

SDO HMI 2011-08-19 02:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.95 | 18.36 | 2.85 | 10.54 | -18.44 | 113.65 | 16.85 | 213.04 | 0.5057 | -344.4 | -290.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 02:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.95 | -19.12 | 116.70 | 19.90 | 216.75 | 0.5396 | 691.0 | 605.8 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -18.67 | 116.47 | 19.67 | 216.97 | 0.5325 | 845.0 | 722.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -16.88 | 113.40 | 16.60 | 214.53 | 0.4842 | 520.0 | 341.5 | |
| 3.96 | 5.58 | 2.28 | 3.21 | -18.89 | 113.46 | 16.66 | 212.30 | 0.5096 | -764.0 | -613.8 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -17.68 | 113.34 | 16.54 | 213.49 | 0.4935 | -818.0 | -632.4 | |
| 0.99 | 4.05 | 0.57 | 2.32 | -18.61 | 113.23 | 16.43 | 212.25 | 0.5043 | -908.5 | -790.1 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -18.87 | 113.02 | 16.22 | 211.64 | 0.5060 | -772.0 | -651.6 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -17.49 | 111.70 | 14.90 | 211.02 | 0.4778 | -820.0 | -558.7 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -16.54 | 111.13 | 14.33 | 211.13 | 0.4610 | -779.0 | -631.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
