groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 163.86 846.16 99.37 513.48 15.86 61.09 -34.61 71.88 0.5764 -203.4 -43.5


previous   or   next   observation for the same group / back to the solar disc

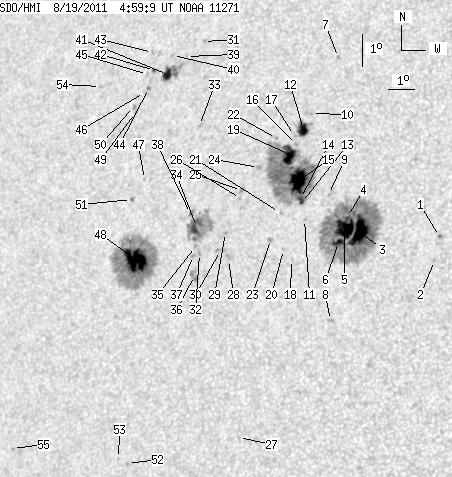

SDO HMI 2011-08-19 04:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.08 0.00 0.61 15.56 67.77 -27.93 69.89 0.4825 -815.0 -739.2
2 0.00 1.17 0.00 0.66 14.82 67.70 -28.00 71.42 0.4808 -857.0 -684.9
3 25.39 295.06 14.75 171.90 15.55 64.84 -30.86 71.23 0.5240 -1329.8 -413.7
4 0.54 -3.00 0.32 -3.00 15.98 64.36 -31.34 70.62 0.5322 -736.2 999999
5 25.03 -3.00 14.62 -3.00 15.61 64.31 -31.39 71.33 0.5316 -979.8 999999
6 5.04 -3.00 2.95 -3.00 15.17 64.17 -31.54 72.20 0.5323 -931.7 999999
7 0.00 1.17 0.00 0.70 20.86 63.00 -32.70 62.74 0.5701 -709.0 -585.7
8 0.00 1.44 0.00 0.84 12.78 64.24 -31.47 76.65 0.5252 -621.0 -551.5
9 0.00 0.45 0.00 0.27 16.61 63.54 -32.17 69.82 0.5456 -630.0 -461.8
10 0.00 0.99 0.00 0.60 19.06 62.38 -33.32 66.06 0.5702 549.0 389.2
11 0.00 0.90 0.00 0.53 15.79 62.79 -32.91 71.56 0.5533 -468.0 -346.5
12 9.72 17.29 5.86 10.42 18.55 62.19 -33.51 67.02 0.5707 -948.4 -379.6
13 1.35 214.92 0.80 129.25 16.31 62.58 -33.12 70.74 0.5577 336.1 -266.9
14 2.25 -13.00 1.34 -13.00 16.43 62.52 -33.19 70.55 0.5589 -571.5 999999
15 24.85 -13.00 14.88 -13.00 16.97 62.33 -33.37 69.67 0.5632 -1218.1 999999
16 0.00 1.89 0.00 1.14 18.07 62.03 -33.68 67.90 0.5711 -611.0 -426.1
17 0.00 1.44 0.00 0.87 18.34 61.89 -33.81 67.50 0.5739 -345.0 -245.0
18 0.00 0.63 0.00 0.37 14.54 62.52 -33.18 73.88 0.5536 -488.0 -410.0
19 15.94 -13.00 9.61 -13.00 17.75 61.83 -33.88 68.53 0.5726 -939.1 999999
20 0.00 1.08 0.00 0.64 14.83 62.17 -33.53 73.48 0.5591 -730.0 -551.1
21 0.00 0.90 0.00 0.54 15.95 61.81 -33.89 71.63 0.5671 311.0 163.3
22 0.00 1.08 0.00 0.66 18.21 61.22 -34.48 68.00 0.5822 -406.0 -293.2
23 0.00 2.34 0.00 1.41 15.10 61.63 -34.07 73.16 0.5673 -637.0 -548.4
24 0.00 2.70 0.00 1.65 17.27 60.73 -34.97 69.75 0.5855 173.0 159.6
25 0.00 2.79 0.00 1.71 16.52 60.23 -35.47 71.17 0.5900 929.0 699.2
26 0.00 1.26 0.00 0.77 16.28 60.25 -35.46 71.58 0.5891 495.0 492.8
27 0.00 1.08 0.00 0.65 9.02 61.31 -34.39 83.98 0.5631 -757.0 -559.6
28 0.00 0.90 0.00 0.55 14.39 60.15 -35.55 74.79 0.5858 808.0 608.8
29 0.00 1.17 0.00 0.72 15.20 59.88 -35.82 73.49 0.5913 850.0 643.4
30 0.00 3.15 0.00 1.93 14.64 59.79 -35.91 74.45 0.5912 696.0 595.5
31 0.00 0.54 0.00 0.35 21.00 57.56 -38.14 65.01 0.6384 681.0 528.5
32 0.00 1.89 0.00 1.17 14.49 59.00 -36.70 74.88 0.6016 824.0 739.8
33 0.00 2.25 0.00 1.42 18.40 58.13 -37.58 68.83 0.6228 739.0 570.3
34 11.98 54.56 7.45 33.88 15.31 58.72 -36.98 73.61 0.6070 928.0 619.4
35 0.00 1.53 0.00 0.95 14.70 58.81 -36.90 74.59 0.6046 811.0 678.4
36 0.00 7.47 0.00 4.62 13.81 58.94 -36.77 76.03 0.6012 571.0 605.1
37 0.00 1.89 0.00 1.17 14.42 58.78 -36.92 75.06 0.6044 814.0 668.3
38 1.26 2.97 0.79 1.86 15.69 58.41 -37.30 73.08 0.6120 602.6 614.8
39 0.00 1.26 0.00 0.81 20.49 57.01 -38.69 66.00 0.6433 614.0 523.6
40 0.00 0.90 0.00 0.59 20.48 56.43 -39.27 66.22 0.6503 596.0 528.8
41 8.64 20.17 5.61 13.07 19.88 56.40 -39.30 67.13 0.6487 890.1 777.5
42 1.35 1.53 0.88 1.00 19.96 55.83 -39.87 67.20 0.6559 692.5 616.7
43 0.00 1.71 0.00 1.13 20.51 55.58 -40.13 66.47 0.6607 574.0 477.1
44 0.00 1.35 0.00 0.88 19.39 55.75 -39.95 68.08 0.6552 894.0 748.9
45 0.00 1.44 0.00 0.95 19.82 55.58 -40.12 67.49 0.6586 557.0 416.9
46 0.00 1.35 0.00 0.88 19.26 55.62 -40.08 68.32 0.6564 726.0 613.2
47 0.00 0.90 0.00 0.58 16.59 56.34 -39.36 72.17 0.6408 484.0 431.8
48 29.44 175.67 18.81 112.30 14.13 56.53 -39.18 75.96 0.6337 1162.4 380.6
49 0.00 0.81 0.00 0.53 18.61 55.43 -40.28 69.34 0.6570 753.0 584.8
50 0.00 1.80 0.00 1.18 18.79 55.29 -40.41 69.11 0.6592 541.0 566.5
51 1.08 1.98 0.70 1.28 15.94 55.96 -39.74 73.26 0.6442 539.0 390.3
52 0.00 1.53 0.00 0.97 7.93 57.19 -38.52 85.82 0.6207 -703.0 -524.6
53 0.00 0.54 0.00 0.34 8.06 56.82 -38.89 85.61 0.6256 -515.0 -419.7
54 0.00 1.80 0.00 1.21 19.30 53.73 -41.98 68.80 0.6794 693.0 454.8
55 0.00 1.44 0.00 0.97 8.03 52.50 -43.21 85.53 0.6823 693.0 468.9


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
