SDO HMI 2011-08-19 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.14 | 21.06 | 2.40 | 12.24 | -18.82 | 114.13 | 18.43 | 214.92 | 0.5235 | -306.4 | -242.3 | |
|
previous
or next observation for the same group /

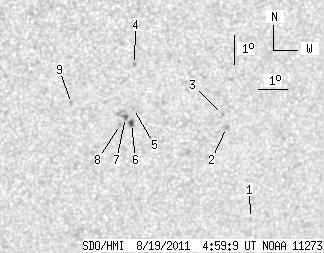

back to the solar disc SDO HMI 2011-08-19 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.83 | -22.31 | 118.02 | 22.32 | 216.29 | 0.5959 | -534.0 | -489.5 | |
| 0.00 | 3.15 | 0.00 | 1.87 | -19.13 | 116.71 | 21.00 | 218.20 | 0.5496 | 811.0 | 592.9 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -18.69 | 116.51 | 20.81 | 218.48 | 0.5429 | 837.0 | 697.9 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -16.89 | 113.33 | 17.63 | 216.14 | 0.4933 | 379.0 | 303.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -18.36 | 113.45 | 17.75 | 214.55 | 0.5121 | -817.0 | -694.5 | |
| 2.43 | 3.42 | 1.41 | 1.98 | -18.86 | 113.44 | 17.73 | 213.95 | 0.5181 | -794.5 | -710.3 | |
| 1.71 | 6.30 | 0.99 | 3.63 | -18.65 | 113.21 | 17.51 | 213.86 | 0.5137 | -877.9 | -723.8 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -18.88 | 113.07 | 17.37 | 213.38 | 0.5153 | -806.0 | -607.9 | |
| 0.00 | 1.89 | 0.00 | 1.07 | -18.12 | 111.36 | 15.65 | 211.56 | 0.4919 | -761.0 | -652.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
