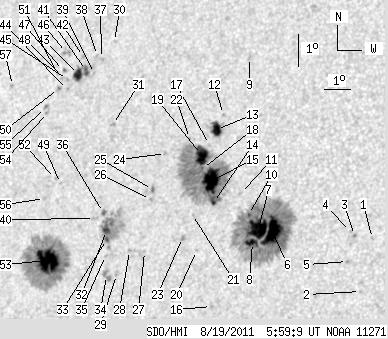

SDO HMI 2011-08-19 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165.21 | 836.04 | 99.53 | 504.55 | 15.92 | 61.04 | -34.11 | 71.60 | 0.5698 | -188.5 | -45.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.75 | 15.53 | 68.47 | -26.69 | 69.29 | 0.4645 | -809.0 | -595.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 13.89 | 68.26 | -26.89 | 72.84 | 0.4614 | -754.0 | -566.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 15.59 | 67.82 | -27.33 | 69.51 | 0.4741 | -937.0 | -740.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 15.71 | 67.66 | -27.49 | 69.36 | 0.4768 | -661.0 | -450.9 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 14.78 | 67.69 | -27.47 | 71.24 | 0.4729 | -894.0 | -684.8 | |
| 27.73 | 282.11 | 16.01 | 163.45 | 15.55 | 64.88 | -30.28 | 70.99 | 0.5158 | -1373.1 | -417.0 | |
| 24.13 | -6.00 | 14.01 | -6.00 | 15.61 | 64.35 | -30.80 | 71.09 | 0.5234 | -1004.9 | 999999 | |
| 5.67 | -6.00 | 3.30 | -6.00 | 15.17 | 64.20 | -30.95 | 71.97 | 0.5241 | -927.5 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.24 | 20.86 | 62.95 | -32.21 | 62.47 | 0.5638 | -779.0 | -537.4 | |
| 1.26 | -6.00 | 0.74 | -6.00 | 16.02 | 63.91 | -31.24 | 70.51 | 0.5309 | -389.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 16.64 | 63.51 | -31.65 | 69.55 | 0.5387 | -610.0 | -426.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 19.03 | 62.38 | -32.78 | 65.86 | 0.5630 | 569.0 | 392.1 | |
| 9.00 | 16.84 | 5.39 | 10.08 | 18.55 | 62.22 | -32.94 | 66.75 | 0.5632 | -955.8 | -394.2 | |
| 0.99 | 217.46 | 0.59 | 129.94 | 16.31 | 62.56 | -32.60 | 70.53 | 0.5505 | 357.9 | -268.0 | |
| 26.20 | -14.00 | 15.59 | -14.00 | 16.97 | 62.35 | -32.80 | 69.43 | 0.5556 | -1213.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 13.13 | 63.01 | -32.14 | 76.16 | 0.5357 | -718.0 | -504.0 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 18.08 | 62.05 | -33.11 | 67.65 | 0.5635 | -599.0 | -436.4 | |
| 0.72 | -14.00 | 0.43 | -14.00 | 17.32 | 61.94 | -33.21 | 69.00 | 0.5623 | -617.1 | 999999 | |
| 15.85 | -14.00 | 9.50 | -14.00 | 17.75 | 61.81 | -33.34 | 68.31 | 0.5655 | -946.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 14.80 | 62.19 | -32.97 | 73.35 | 0.5512 | -694.0 | -524.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | 15.89 | 61.84 | -33.31 | 71.53 | 0.5590 | 247.0 | 244.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 18.21 | 61.25 | -33.90 | 67.76 | 0.5746 | -466.0 | -311.4 | |
| 0.00 | 2.52 | 0.00 | 1.51 | 15.16 | 61.60 | -33.56 | 72.89 | 0.5604 | -636.0 | -571.3 | |
| 0.00 | 1.71 | 0.00 | 1.04 | 17.69 | 60.44 | -34.72 | 68.96 | 0.5835 | 499.0 | 509.5 | |
| 1.53 | 2.43 | 0.93 | 1.48 | 16.56 | 60.18 | -34.98 | 70.96 | 0.5835 | 756.0 | 665.3 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 16.25 | 60.17 | -34.99 | 71.48 | 0.5828 | 698.0 | 583.4 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 14.64 | 60.25 | -34.91 | 74.19 | 0.5776 | 728.0 | 573.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 14.64 | 59.67 | -35.49 | 74.35 | 0.5855 | 768.0 | 658.9 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 13.87 | 59.31 | -35.85 | 75.73 | 0.5888 | 707.0 | 573.7 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 21.01 | 57.55 | -37.61 | 64.80 | 0.6319 | 724.0 | 599.8 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 18.44 | 58.17 | -36.99 | 68.56 | 0.6154 | 779.0 | 622.8 | |
| 4.59 | 51.33 | 2.84 | 31.65 | 15.19 | 58.67 | -36.49 | 73.69 | 0.6001 | 980.9 | 669.8 | |
| 1.80 | -32.00 | 1.11 | -32.00 | 14.91 | 58.72 | -36.43 | 74.13 | 0.5988 | 838.8 | 999999 | |
| 0.00 | 6.66 | 0.00 | 4.09 | 13.82 | 58.93 | -36.23 | 75.90 | 0.5939 | 514.0 | 622.9 | |
| 0.00 | 1.26 | 0.00 | 0.78 | 14.42 | 58.78 | -36.38 | 74.93 | 0.5971 | 750.0 | 673.1 | |
| 1.62 | 2.52 | 1.01 | 1.56 | 15.73 | 58.44 | -36.72 | 72.86 | 0.6044 | 684.0 | 563.0 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 20.45 | 57.18 | -37.98 | 65.80 | 0.6344 | 765.0 | 696.9 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 20.53 | 56.99 | -38.17 | 65.75 | 0.6370 | 523.0 | 523.7 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 19.96 | 57.03 | -38.13 | 66.60 | 0.6346 | 671.0 | 609.0 | |
| 0.00 | 2.43 | 0.00 | 1.51 | 15.52 | 58.13 | -37.03 | 73.28 | 0.6081 | 592.0 | 470.6 | |
| 3.60 | 16.84 | 2.31 | 10.85 | 20.03 | 56.68 | -38.48 | 66.62 | 0.6391 | 913.6 | 675.2 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 20.46 | 56.43 | -38.73 | 66.06 | 0.6436 | 596.0 | 486.9 | |
| 7.65 | -41.00 | 4.94 | -41.00 | 19.89 | 56.39 | -38.77 | 66.94 | 0.6422 | 913.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.99 | 19.39 | 56.08 | -39.08 | 67.80 | 0.6445 | 778.0 | 608.2 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 19.70 | 55.99 | -39.17 | 67.36 | 0.6466 | 801.0 | 684.1 | |
| 0.00 | 4.32 | 0.00 | 2.82 | 20.53 | 55.70 | -39.46 | 66.21 | 0.6527 | 673.0 | 548.8 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 19.96 | 55.74 | -39.41 | 67.04 | 0.6504 | 666.0 | 642.8 | |
| 0.00 | 0.72 | 0.00 | 0.47 | 19.78 | 55.76 | -39.40 | 67.32 | 0.6496 | 627.0 | 660.1 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 16.49 | 56.55 | -38.61 | 72.13 | 0.6309 | 570.0 | 505.2 | |
| 0.00 | 2.16 | 0.00 | 1.40 | 19.40 | 55.70 | -39.46 | 67.91 | 0.6492 | 878.0 | 696.8 | |
| 0.00 | 1.26 | 0.00 | 0.82 | 19.85 | 55.52 | -39.63 | 67.28 | 0.6527 | 571.0 | 422.4 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 16.63 | 56.31 | -38.84 | 71.98 | 0.6342 | 681.0 | 483.9 | |
| 32.87 | 184.41 | 20.83 | 117.04 | 14.11 | 56.55 | -38.61 | 75.90 | 0.6262 | 1161.8 | 333.6 | |
| 0.00 | 1.71 | 0.00 | 1.11 | 18.63 | 55.46 | -39.69 | 69.15 | 0.6499 | 743.0 | 625.5 | |
| 0.00 | 1.71 | 0.00 | 1.11 | 18.77 | 55.34 | -39.82 | 68.96 | 0.6519 | 714.0 | 625.4 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 15.99 | 56.02 | -39.14 | 73.05 | 0.6366 | 710.0 | 486.4 | |
| 0.00 | 1.35 | 0.00 | 0.90 | 19.35 | 53.77 | -41.39 | 68.57 | 0.6725 | 547.0 | 502.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
