SDO HMI 2011-08-19 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.14 | 17.01 | 2.40 | 9.89 | -18.62 | 114.11 | 18.95 | 215.97 | 0.5257 | -159.9 | -212.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

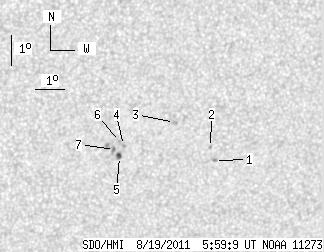

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.91 | -19.16 | 116.75 | 21.59 | 218.93 | 0.5552 | 784.0 | 705.6 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -18.72 | 116.55 | 21.39 | 219.21 | 0.5485 | 787.0 | 645.3 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -17.82 | 115.20 | 20.05 | 218.51 | 0.5262 | 719.0 | 571.5 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -18.52 | 113.56 | 18.40 | 215.33 | 0.5196 | -767.0 | -614.6 | |
| 2.79 | 3.60 | 1.62 | 2.09 | -18.89 | 113.47 | 18.31 | 214.77 | 0.5232 | -756.6 | -584.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -18.38 | 113.41 | 18.25 | 215.28 | 0.5167 | -802.0 | -693.2 | |
| 1.35 | 6.39 | 0.78 | 3.69 | -18.64 | 113.27 | 18.11 | 214.77 | 0.5186 | -870.1 | -749.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
