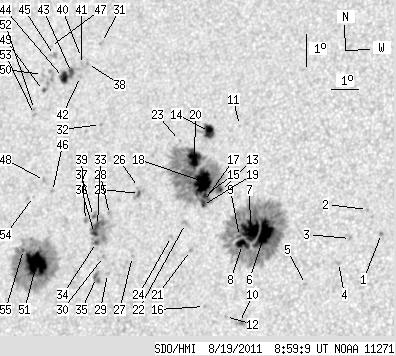

SDO HMI 2011-08-19 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165.29 | 857.97 | 97.78 | 508.21 | 15.88 | 61.10 | -32.41 | 71.06 | 0.5464 | -207.1 | -47.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 08:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.74 | 15.76 | 68.96 | -24.55 | 67.48 | 0.4346 | -994.0 | -819.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 16.47 | 68.38 | -25.13 | 66.33 | 0.4465 | -691.0 | -517.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 15.56 | 67.91 | -25.60 | 68.60 | 0.4489 | -877.0 | -757.9 | |
| 0.00 | 1.98 | 0.00 | 1.10 | 14.80 | 67.59 | -25.92 | 70.41 | 0.4505 | -730.0 | -551.8 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 14.07 | 66.53 | -26.98 | 72.50 | 0.4634 | -634.0 | -542.2 | |
| 23.50 | 288.85 | 13.36 | 164.78 | 15.55 | 64.87 | -28.65 | 70.25 | 0.4927 | -1347.8 | -408.9 | |
| 24.58 | -6.00 | 14.05 | -6.00 | 15.61 | 64.35 | -29.16 | 70.37 | 0.5003 | -999.2 | 999999 | |
| 7.83 | -6.00 | 4.48 | -6.00 | 15.17 | 64.13 | -29.38 | 71.33 | 0.5018 | -875.4 | 999999 | |
| 1.53 | -6.00 | 0.88 | -6.00 | 15.41 | 63.99 | -29.53 | 70.93 | 0.5047 | -547.5 | 999999 | |
| 0.00 | 5.13 | 0.00 | 2.92 | 12.79 | 64.36 | -29.16 | 75.98 | 0.4917 | -784.0 | -671.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.81 | 63.38 | -30.13 | 64.85 | 0.5270 | -702.0 | -571.9 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 12.94 | 63.84 | -29.68 | 75.83 | 0.4997 | -555.0 | -367.8 | |
| 1.80 | 223.84 | 1.04 | 131.41 | 16.78 | 63.06 | -30.45 | 68.76 | 0.5226 | 272.7 | -276.8 | |
| 10.62 | 18.37 | 6.25 | 10.81 | 18.56 | 62.31 | -31.20 | 65.88 | 0.5401 | -908.5 | -225.4 | |
| 1.80 | -13.00 | 1.05 | -13.00 | 16.59 | 62.51 | -31.01 | 69.36 | 0.5296 | -1112.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 13.20 | 63.04 | -30.47 | 75.56 | 0.5118 | -715.0 | -526.3 | |
| 1.80 | -13.00 | 1.05 | -13.00 | 16.40 | 62.50 | -31.01 | 69.70 | 0.5290 | -486.0 | 999999 | |
| 24.04 | -13.00 | 14.06 | -13.00 | 17.01 | 62.35 | -31.16 | 68.65 | 0.5333 | -1202.8 | 999999 | |
| 1.53 | -13.00 | 0.89 | -13.00 | 16.28 | 62.49 | -31.03 | 69.94 | 0.5288 | 352.2 | 999999 | |
| 13.33 | -13.00 | 7.84 | -13.00 | 17.70 | 61.92 | -31.59 | 67.61 | 0.5418 | -982.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 14.88 | 62.28 | -31.23 | 72.62 | 0.5271 | -819.0 | -537.1 | |
| 0.00 | 3.15 | 0.00 | 1.84 | 15.69 | 61.96 | -31.55 | 71.24 | 0.5341 | 628.0 | 374.6 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 18.22 | 61.25 | -32.26 | 67.01 | 0.5529 | -496.0 | -375.0 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 15.26 | 61.51 | -32.00 | 72.19 | 0.5390 | -671.0 | -528.7 | |
| 1.53 | 7.65 | 0.92 | 4.58 | 16.50 | 60.09 | -33.43 | 70.50 | 0.5625 | 758.2 | 528.3 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 16.68 | 60.01 | -33.50 | 70.21 | 0.5640 | 451.0 | 501.9 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 14.56 | 60.18 | -33.34 | 73.89 | 0.5558 | 807.0 | 725.0 | |
| 0.00 | 3.15 | 0.00 | 1.90 | 15.79 | 59.08 | -34.43 | 72.08 | 0.5740 | 771.0 | 683.8 | |
| 0.00 | 1.62 | 0.00 | 0.97 | 13.98 | 59.33 | -34.18 | 75.14 | 0.5662 | 673.0 | 514.1 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 14.49 | 59.09 | -34.42 | 74.32 | 0.5706 | 854.0 | 721.8 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 21.05 | 57.52 | -35.99 | 64.03 | 0.6122 | 531.0 | 526.9 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 18.52 | 58.14 | -35.37 | 67.84 | 0.5949 | 794.0 | 657.3 | |
| 2.97 | 42.23 | 1.80 | 25.56 | 15.42 | 58.69 | -34.82 | 72.83 | 0.5783 | 1009.1 | 677.9 | |
| 1.98 | -33.00 | 1.20 | -33.00 | 14.90 | 58.75 | -34.76 | 73.70 | 0.5762 | 889.2 | 999999 | |
| 0.00 | 6.12 | 0.00 | 3.69 | 13.84 | 58.94 | -34.57 | 75.50 | 0.5713 | 730.0 | 688.6 | |
| 2.16 | -33.00 | 1.31 | -33.00 | 15.17 | 58.62 | -34.89 | 73.28 | 0.5786 | 958.2 | 999999 | |
| 1.17 | -33.00 | 0.71 | -33.00 | 15.69 | 58.48 | -35.03 | 72.44 | 0.5818 | 650.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 20.37 | 57.15 | -36.36 | 65.27 | 0.6142 | 794.0 | 637.0 | |
| 0.00 | 2.61 | 0.00 | 1.59 | 15.54 | 58.20 | -35.31 | 72.77 | 0.5852 | 675.0 | 537.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 20.54 | 56.86 | -36.65 | 65.13 | 0.6184 | 644.0 | 537.0 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 20.32 | 56.92 | -36.59 | 65.44 | 0.6169 | 821.0 | 690.6 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 19.95 | 56.98 | -36.53 | 66.01 | 0.6147 | 676.0 | 571.9 | |
| 3.33 | 17.11 | 2.10 | 10.79 | 20.05 | 56.59 | -36.92 | 66.01 | 0.6200 | 934.1 | 705.8 | |
| 6.66 | -43.00 | 4.21 | -43.00 | 19.87 | 56.32 | -37.20 | 66.39 | 0.6228 | 929.2 | 999999 | |
| 0.00 | 3.87 | 0.00 | 2.47 | 20.52 | 55.76 | -37.75 | 65.59 | 0.6319 | 738.0 | 588.7 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 16.34 | 56.75 | -36.77 | 71.87 | 0.6066 | 630.0 | 592.7 | |
| 0.00 | 0.36 | 0.00 | 0.23 | 20.79 | 55.52 | -37.99 | 65.28 | 0.6358 | 503.0 | 471.0 | |
| 0.00 | 1.98 | 0.00 | 1.24 | 16.66 | 56.36 | -37.15 | 71.47 | 0.6125 | 668.0 | 540.4 | |
| 1.08 | 10.71 | 0.69 | 6.81 | 19.41 | 55.63 | -37.89 | 67.35 | 0.6298 | 703.8 | 643.9 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 19.90 | 55.45 | -38.07 | 66.66 | 0.6337 | 575.0 | 484.4 | |
| 31.06 | 189.90 | 19.27 | 117.91 | 14.11 | 56.57 | -36.94 | 75.57 | 0.6040 | 1156.0 | 342.1 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 18.80 | 55.42 | -38.09 | 68.37 | 0.6305 | 669.0 | 630.3 | |
| 0.00 | 1.80 | 0.00 | 1.15 | 18.65 | 55.46 | -38.05 | 68.59 | 0.6295 | 779.0 | 616.3 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 16.14 | 56.04 | -37.48 | 72.39 | 0.6154 | 529.0 | 362.5 | |
| 0.99 | -51.00 | 0.62 | -51.00 | 14.50 | 55.99 | -37.53 | 75.06 | 0.6126 | 521.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
