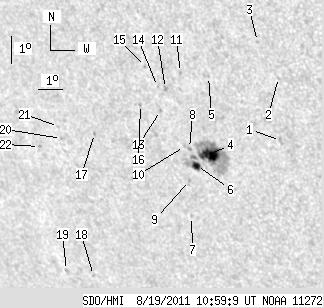

SDO HMI 2011-08-19 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.70 | 105.50 | 14.39 | 73.53 | -20.89 | 56.68 | -35.74 | 129.17 | 0.7056 | 400.2 | 308.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.06 | 0.00 | 2.03 | -20.25 | 60.15 | -32.26 | 131.16 | 0.6675 | 488.0 | 396.5 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -18.11 | 60.55 | -31.87 | 128.86 | 0.6467 | 439.0 | 419.6 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -16.95 | 59.99 | -32.43 | 126.91 | 0.6438 | 370.0 | 404.5 | |
| 15.66 | 65.45 | 10.85 | 45.26 | -20.93 | 57.21 | -35.21 | 129.59 | 0.7011 | 929.9 | 428.5 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -18.26 | 57.84 | -34.58 | 126.85 | 0.6758 | 621.0 | 498.8 | |
| 5.04 | 15.12 | 3.54 | 10.62 | -21.36 | 56.57 | -35.85 | 129.60 | 0.7101 | 517.0 | 154.4 | |
| 0.00 | 1.17 | 0.00 | 0.84 | -23.17 | 55.82 | -36.60 | 131.11 | 0.7297 | -649.0 | -473.3 | |
| 0.00 | 1.80 | 0.00 | 1.26 | -20.78 | 56.45 | -35.97 | 128.84 | 0.7073 | 289.0 | 331.6 | |
| 0.00 | 1.17 | 0.00 | 0.83 | -21.90 | 56.13 | -36.29 | 129.90 | 0.7181 | 387.0 | 276.4 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -20.73 | 56.26 | -36.15 | 128.64 | 0.7087 | 393.0 | 263.8 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -18.21 | 56.75 | -35.66 | 125.96 | 0.6865 | 619.0 | 542.4 | |
| 0.00 | 2.16 | 0.00 | 1.49 | -18.79 | 56.01 | -36.40 | 126.14 | 0.6980 | 714.0 | 617.8 | |
| 0.00 | 1.26 | 0.00 | 0.88 | -19.56 | 55.61 | -36.80 | 126.78 | 0.7071 | 569.0 | 498.8 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -18.75 | 55.70 | -36.71 | 125.87 | 0.7008 | 364.0 | 341.8 | |
| 0.00 | 1.35 | 0.00 | 0.93 | -18.11 | 55.38 | -37.03 | 124.86 | 0.6999 | 415.0 | 412.0 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -19.42 | 54.84 | -37.57 | 126.06 | 0.7137 | 373.0 | 357.3 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -20.57 | 52.59 | -39.82 | 125.92 | 0.7426 | -766.0 | -602.8 | |
| 0.00 | 1.17 | 0.00 | 0.94 | -25.65 | 50.66 | -41.75 | 130.33 | 0.7897 | -595.0 | -476.0 | |
| 0.00 | 1.26 | 0.00 | 1.03 | -25.58 | 49.46 | -42.95 | 129.52 | 0.7990 | -314.0 | -235.4 | |
| 0.00 | 1.17 | 0.00 | 0.89 | -20.87 | 51.08 | -41.33 | 125.30 | 0.7584 | -661.0 | -542.5 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -20.46 | 51.09 | -41.33 | 124.84 | 0.7561 | -555.0 | -565.7 | |
| 0.00 | 0.99 | 0.00 | 0.77 | -21.23 | 49.99 | -42.42 | 125.06 | 0.7704 | -656.0 | -540.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
