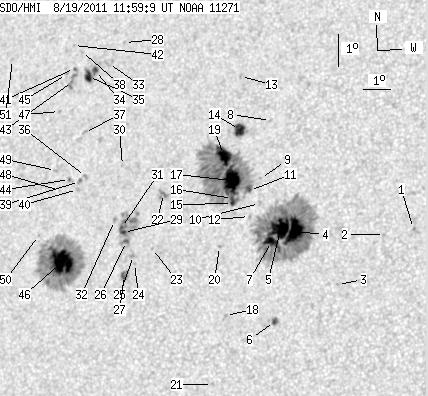

SDO HMI 2011-08-19 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.71 | 851.44 | 94.98 | 495.45 | 15.87 | 61.17 | -30.70 | 70.37 | 0.5228 | -233.0 | -53.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.68 | 15.83 | 68.96 | -22.90 | 66.12 | 0.4111 | -869.0 | -742.2 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 15.60 | 68.00 | -23.87 | 67.36 | 0.4240 | -738.0 | -583.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 14.00 | 66.57 | -25.30 | 71.83 | 0.4382 | -582.0 | -449.4 | |
| 23.85 | 294.26 | 13.37 | 165.38 | 15.54 | 64.86 | -27.00 | 69.43 | 0.4691 | -1276.7 | -398.9 | |
| 24.93 | -4.00 | 14.04 | -4.00 | 15.60 | 64.36 | -27.51 | 69.57 | 0.4767 | -934.1 | 999999 | |
| 3.51 | 3.69 | 1.96 | 2.06 | 12.76 | 64.52 | -27.35 | 75.43 | 0.4648 | -810.7 | -908.5 | |
| 9.09 | -4.00 | 5.12 | -4.00 | 15.19 | 64.10 | -27.77 | 70.54 | 0.4788 | -871.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 18.90 | 63.45 | -28.41 | 63.65 | 0.5044 | -590.0 | -364.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 17.10 | 63.41 | -28.46 | 67.12 | 0.4964 | -558.0 | -486.9 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 16.33 | 63.49 | -28.37 | 68.57 | 0.4918 | -734.0 | -552.0 | |
| 1.53 | 235.21 | 0.87 | 135.78 | 16.71 | 63.07 | -28.79 | 68.05 | 0.4993 | 316.3 | -278.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 15.91 | 63.20 | -28.66 | 69.54 | 0.4943 | -571.0 | -394.8 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 20.20 | 62.08 | -29.78 | 62.15 | 0.5292 | -627.0 | -491.7 | |
| 9.90 | 13.86 | 5.72 | 8.01 | 18.56 | 62.38 | -29.49 | 64.94 | 0.5172 | -884.1 | -595.8 | |
| 1.89 | -11.00 | 1.08 | -11.00 | 16.28 | 62.53 | -29.34 | 69.16 | 0.5052 | 273.5 | 999999 | |
| 2.25 | -11.00 | 1.29 | -11.00 | 16.43 | 62.50 | -29.36 | 68.88 | 0.5062 | -589.5 | 999999 | |
| 24.93 | -11.00 | 14.34 | -11.00 | 16.98 | 62.37 | -29.49 | 67.90 | 0.5102 | -1116.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 12.84 | 62.78 | -29.09 | 75.83 | 0.4908 | -701.0 | -516.8 | |
| 16.11 | -11.00 | 9.33 | -11.00 | 17.76 | 61.94 | -29.93 | 66.67 | 0.5195 | -882.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 14.93 | 62.27 | -29.60 | 71.87 | 0.5041 | -699.0 | -539.2 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 10.72 | 62.56 | -29.30 | 80.19 | 0.4900 | -701.0 | -583.9 | |
| 0.00 | 4.23 | 0.00 | 2.49 | 16.43 | 59.96 | -31.90 | 70.02 | 0.5415 | 765.0 | 607.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 14.73 | 59.85 | -32.02 | 73.16 | 0.5378 | 588.0 | 480.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 14.23 | 59.26 | -32.60 | 74.26 | 0.5447 | 827.0 | 722.3 | |
| 0.00 | 3.15 | 0.00 | 1.86 | 14.47 | 59.18 | -32.68 | 73.84 | 0.5464 | 841.0 | 665.0 | |
| 2.16 | 43.48 | 1.28 | 25.82 | 14.88 | 58.85 | -33.01 | 73.21 | 0.5521 | 840.8 | 694.4 | |
| 0.00 | 5.85 | 0.00 | 3.46 | 13.84 | 58.95 | -32.91 | 75.05 | 0.5482 | 921.0 | 776.3 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 20.99 | 57.45 | -34.41 | 63.39 | 0.5924 | 585.0 | 502.2 | |
| 1.53 | -26.00 | 0.91 | -26.00 | 15.15 | 58.69 | -33.17 | 72.78 | 0.5550 | 937.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 17.20 | 58.26 | -33.60 | 69.36 | 0.5671 | 525.0 | 418.2 | |
| 0.63 | -26.00 | 0.38 | -26.00 | 15.30 | 58.59 | -33.27 | 72.55 | 0.5568 | 881.1 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.24 | 15.50 | 58.29 | -33.57 | 72.31 | 0.5615 | 724.0 | 516.5 | |
| 0.00 | 3.96 | 0.00 | 2.44 | 20.30 | 57.00 | -34.87 | 64.72 | 0.5951 | 449.0 | 597.4 | |
| 2.88 | 13.14 | 1.78 | 8.13 | 20.05 | 56.55 | -35.32 | 65.32 | 0.5998 | 910.1 | 777.5 | |
| 6.30 | -34.00 | 3.90 | -34.00 | 19.85 | 56.32 | -35.54 | 65.75 | 0.6019 | 910.9 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.15 | 16.77 | 56.93 | -34.94 | 70.58 | 0.5836 | 786.0 | 623.3 | |
| 0.00 | 1.71 | 0.00 | 1.05 | 18.11 | 56.59 | -35.27 | 68.46 | 0.5923 | -644.0 | -512.2 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 20.60 | 55.84 | -36.02 | 64.75 | 0.6108 | 589.0 | 515.9 | |
| 0.00 | 2.34 | 0.00 | 1.43 | 16.60 | 56.73 | -35.13 | 70.93 | 0.5857 | 797.0 | 640.1 | |
| 0.00 | 1.62 | 0.00 | 0.99 | 16.35 | 56.71 | -35.16 | 71.35 | 0.5853 | 703.0 | 573.3 | |
| 0.90 | 1.71 | 0.56 | 1.07 | 20.06 | 55.71 | -36.15 | 65.67 | 0.6104 | 593.4 | 583.1 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 20.77 | 55.48 | -36.39 | 64.65 | 0.6160 | 525.0 | 447.2 | |
| 0.00 | 7.74 | 0.00 | 4.82 | 19.65 | 55.74 | -36.13 | 66.30 | 0.6086 | 843.0 | 697.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 16.64 | 56.34 | -35.53 | 71.00 | 0.5911 | 616.0 | 595.0 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 19.85 | 55.44 | -36.42 | 66.11 | 0.6130 | 551.0 | 459.6 | |
| 31.32 | 184.08 | 19.05 | 112.04 | 14.12 | 56.56 | -35.31 | 75.18 | 0.5820 | 1069.7 | 347.1 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 18.69 | 55.46 | -36.40 | 67.94 | 0.6088 | 729.0 | 540.3 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 16.27 | 56.02 | -35.84 | 71.70 | 0.5943 | 483.0 | 317.3 | |
| 0.00 | 1.71 | 0.00 | 1.06 | 16.87 | 55.73 | -36.13 | 70.80 | 0.5997 | 629.0 | 529.4 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 14.85 | 55.49 | -36.37 | 74.21 | 0.5979 | 463.0 | 320.1 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 20.16 | 53.15 | -38.71 | 66.49 | 0.6425 | 496.0 | 424.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
