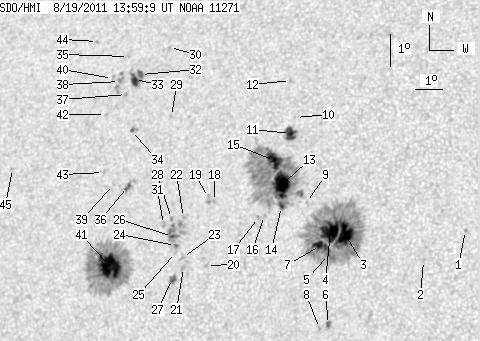

SDO HMI 2011-08-19 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 160.29 | 845.72 | 92.29 | 487.05 | 15.91 | 61.15 | -29.61 | 69.79 | 0.5077 | -162.7 | -72.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.68 | 15.87 | 68.99 | -21.77 | 65.10 | 0.3950 | -852.0 | -755.0 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 14.89 | 67.67 | -23.09 | 68.44 | 0.4093 | -830.0 | -619.2 | |
| 20.25 | 296.15 | 11.24 | 164.94 | 15.56 | 64.89 | -25.87 | 68.75 | 0.4529 | -1327.5 | -407.1 | |
| 24.30 | -3.00 | 13.55 | -3.00 | 15.63 | 64.35 | -26.41 | 68.92 | 0.4609 | -955.7 | 999999 | |
| 1.26 | -3.00 | 0.70 | -3.00 | 14.92 | 64.38 | -26.38 | 70.40 | 0.4577 | -779.8 | 999999 | |
| 1.08 | 2.61 | 0.60 | 1.44 | 12.79 | 64.64 | -26.12 | 74.90 | 0.4466 | -926.3 | -814.1 | |
| 7.92 | -3.00 | 4.42 | -3.00 | 15.18 | 64.06 | -26.70 | 70.02 | 0.4633 | -897.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 12.65 | 64.34 | -26.42 | 75.32 | 0.4506 | -763.0 | -591.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 16.47 | 63.38 | -27.38 | 67.75 | 0.4785 | -691.0 | -556.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 19.06 | 62.54 | -28.22 | 63.23 | 0.5026 | 304.0 | 271.6 | |
| 10.80 | 12.69 | 6.17 | 7.25 | 18.56 | 62.45 | -28.31 | 64.23 | 0.5012 | -823.3 | -571.0 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 20.20 | 62.14 | -28.62 | 61.40 | 0.5141 | -630.0 | -463.2 | |
| 25.11 | 237.93 | 14.29 | 135.94 | 16.97 | 62.40 | -28.36 | 67.30 | 0.4944 | -1096.5 | -275.2 | |
| 1.80 | -13.00 | 1.02 | -13.00 | 16.30 | 62.51 | -28.25 | 68.57 | 0.4900 | 320.1 | 999999 | |
| 15.48 | -13.00 | 8.86 | -13.00 | 17.70 | 62.03 | -28.74 | 66.13 | 0.5029 | -904.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 15.99 | 61.95 | -28.81 | 69.46 | 0.4968 | -400.0 | -308.6 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 15.92 | 61.74 | -29.02 | 69.70 | 0.4994 | 568.0 | 494.8 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 16.32 | 60.07 | -30.69 | 69.72 | 0.5243 | 612.0 | 509.7 | |
| 0.00 | 2.43 | 0.00 | 1.42 | 16.43 | 59.83 | -30.93 | 69.62 | 0.5280 | 740.0 | 626.7 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 14.34 | 60.10 | -30.66 | 73.42 | 0.5175 | 711.0 | 541.4 | |
| 0.00 | 2.16 | 0.00 | 1.26 | 14.23 | 59.28 | -31.49 | 73.91 | 0.5290 | 837.0 | 698.5 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 15.76 | 59.02 | -31.74 | 71.18 | 0.5369 | 878.0 | 779.1 | |
| 0.00 | 2.16 | 0.00 | 1.26 | 14.54 | 59.19 | -31.57 | 73.37 | 0.5310 | 799.0 | 651.2 | |
| 0.54 | 25.20 | 0.32 | 14.79 | 14.89 | 58.88 | -31.89 | 72.83 | 0.5364 | 936.3 | 728.3 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 14.67 | 58.91 | -31.85 | 73.21 | 0.5353 | 608.0 | 476.5 | |
| 1.80 | -24.00 | 1.06 | -24.00 | 15.15 | 58.72 | -32.04 | 72.40 | 0.5393 | 964.6 | 999999 | |
| 3.33 | 4.41 | 1.95 | 2.58 | 13.87 | 58.93 | -31.84 | 74.68 | 0.5330 | 822.8 | 742.1 | |
| 0.00 | 1.80 | 0.00 | 1.06 | 15.70 | 58.59 | -32.17 | 71.45 | 0.5428 | 741.0 | 622.4 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 18.83 | 57.97 | -32.80 | 66.20 | 0.5624 | 776.0 | 603.2 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 20.96 | 57.38 | -33.38 | 62.92 | 0.5792 | 582.0 | 533.8 | |
| 0.00 | 2.52 | 0.00 | 1.49 | 15.50 | 58.32 | -32.44 | 71.91 | 0.5459 | 732.0 | 523.3 | |
| 3.33 | 17.28 | 2.03 | 10.56 | 20.05 | 56.48 | -34.28 | 64.86 | 0.5867 | 928.6 | 601.8 | |
| 6.21 | -32.00 | 3.80 | -32.00 | 19.88 | 56.29 | -34.47 | 65.22 | 0.5885 | 891.9 | 999999 | |
| 1.17 | 3.78 | 0.71 | 2.29 | 18.30 | 56.54 | -34.22 | 67.73 | 0.5791 | -430.6 | -308.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 20.58 | 55.87 | -34.89 | 64.29 | 0.5966 | 647.0 | 457.4 | |
| 3.15 | 7.56 | 1.90 | 4.55 | 16.58 | 56.76 | -34.00 | 70.58 | 0.5705 | 669.3 | 576.6 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 19.40 | 56.09 | -34.67 | 66.10 | 0.5890 | 749.0 | 669.0 | |
| 0.00 | 9.54 | 0.00 | 5.87 | 19.78 | 55.72 | -35.04 | 65.64 | 0.5953 | 865.0 | 699.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 16.60 | 56.22 | -34.54 | 70.72 | 0.5779 | 715.0 | 504.5 | |
| 0.00 | 2.25 | 0.00 | 1.39 | 19.86 | 55.43 | -35.34 | 65.65 | 0.5993 | 561.0 | 514.2 | |
| 32.76 | 187.89 | 19.67 | 112.90 | 14.12 | 56.53 | -34.23 | 74.90 | 0.5672 | 1050.2 | 344.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 18.73 | 55.43 | -35.33 | 67.47 | 0.5951 | 762.0 | 626.3 | |
| 0.00 | 2.07 | 0.00 | 1.26 | 16.94 | 55.76 | -35.00 | 70.30 | 0.5850 | 695.0 | 567.7 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 20.96 | 54.53 | -36.23 | 64.28 | 0.6149 | 546.0 | 485.9 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 16.82 | 52.17 | -38.59 | 71.60 | 0.6314 | 624.0 | 451.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
