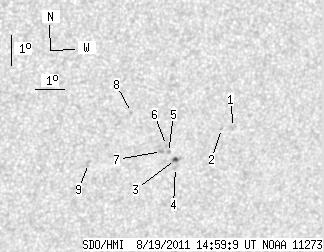

SDO HMI 2011-08-19 14:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.98 | 18.99 | 1.19 | 11.37 | -18.59 | 113.29 | 23.08 | 221.46 | 0.5631 | -422.5 | -317.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-19 14:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.97 | 0.00 | 1.80 | -17.97 | 115.39 | 25.18 | 224.74 | 0.5772 | 672.0 | 545.6 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -17.98 | 114.97 | 24.76 | 224.25 | 0.5731 | 635.0 | 517.8 | |
| 1.98 | 3.51 | 1.19 | 2.11 | -18.94 | 113.50 | 23.29 | 221.32 | 0.5685 | -782.9 | -611.1 | |
| 0.00 | 2.52 | 0.00 | 1.52 | -19.21 | 113.54 | 23.33 | 221.04 | 0.5717 | -543.0 | -436.6 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -18.69 | 113.22 | 23.01 | 221.29 | 0.5633 | -773.0 | -648.1 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -18.45 | 113.11 | 22.91 | 221.46 | 0.5598 | -814.0 | -595.9 | |
| 0.00 | 2.52 | 0.00 | 1.50 | -18.64 | 112.97 | 22.76 | 221.04 | 0.5604 | -740.0 | -676.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -17.29 | 111.75 | 21.54 | 221.21 | 0.5343 | -754.0 | -619.3 | |
| 0.00 | 2.43 | 0.00 | 1.43 | -18.93 | 110.49 | 20.28 | 217.49 | 0.5408 | -634.0 | -548.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
